FGD5/6-IR Pellistor Replacement Gas Detectors

Updated:2023-10-27

Views:1125

  • Brand: PST/Status Scientific
  • Model: FGD5/6-IR
  • Description: Flameproof Fixed Gas Detectors are used in Potentially Explosive Atmospheres where, due to the nature of the environment or the industrial process taking place, there is the risk of an incendive spark
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

FGD5/6-IR Pellistor Replacement Gas Detectors Description:

Datasheet

Detection of Methane and Other Hydrocarbon Gases

Features

Certified Ex d IIC to IECEx and ATEX

Temperature compensated infrared sensor for detection of Methane and other Hydrocarbon gases

Tested and approved by major oil companies

Compatible with industry standard control panels

Eliminates all poisoning problems associated with pellistors

Flameproof Fixed Gas Detectors are used in Potentially Explosive Atmospheres where, due to the nature of the environment or the industrial process taking place, there is the risk of an incendive spark from electrical apparatus causing an explosion to occur and the organisation responsible for the safety of the area requires that electrical equipment be enclosed within a flameproof enclosure (also known as an FLP, Ex d or explosion-proof enclosure).

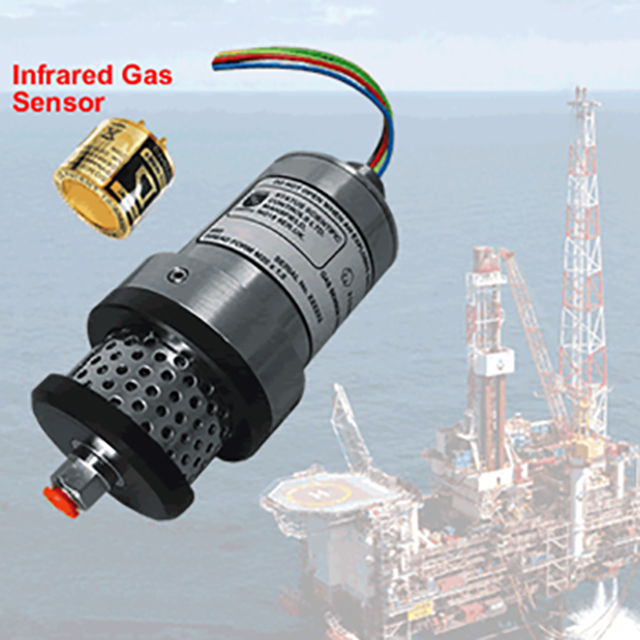

The FGD5/6-IR is for the direct replacement of oil and gas industry 'pellistor' types. It does not utilise mirrors, lenses or separate heaters, eliminates the requirement for routine maintenance and minimises operating costs. An optional Weatherguard protects sensor from rain and salt spray and has the option for remote gas testing.

Specifications

Size Body 73mm long x 50mm diameter, thread 20mm long
Overall body length with weatherguard fitted = 149mm
Material Sensor Body – Stainless Steel Grade 316
Weatherguard – Stainless Steel Grade 304 & Nylon 66
Mounting thread M20 X 1.5 or M25 X 1.5 or ½” NPT
Weights 0.67 Kg excluding weatherguard
0.8 Kg including weatherguard
Ex d Gas Inlet Protection Method Stainless Steel Mesh Grade 316
Gas types Hydrocarbons
(Note – Infrared sensors have no response to Hydrogen)
Operating voltage at detector head 3.2 to 7.5 volts dc
Maximum short term overvoltage 24 volts dc
Recommended operating currents Type ‘200’ - 160 to 250mA
Type ‘300’ – 250 to 350mA
Output signal 15 to 30 mv  /   % CH4
(Supplied as 20 mV / % CH4 unless otherwise requested)
Measurement range 0 – 100% LEL (5% vol. CH4),  or
0 – 100% LEL (4.4% vol. CH4 to EN 61779-1), or
0 – 100% volume CH4
Response time Typically T90 < 30 sec (CH4)
Measurement resolution 1% LEL or 1% volume (CH4)
IP rating Enclosure IP66, Sensor IP65
Operating temperature - 20 to +60 O C
Humidity range 0 to 95% RH non-condensing
Operating pressure Atmospheric  + or - 10%
Performance standard EN 61779-1:2000, EN61779-4:2000, EN61779-5:2000
Hazardous Area Certification
Certificate Numbers IECEx KEM06.0022U, Code Ex d IIC
KEMA 03ATEX2247 U, Code Ex d IIC
Standards IEC 60079-0 : 2004 (Edition 4)
IEC 60079-1 : 2007-04 (Edition 6)
EN 60079-0:2018
EN 60079-1:2014
EN50270:2006
Temperature Codes Ta -20 to +60 deg C
Zones 1 & 2

Suitable Applications

Oil & Gas industry

Industrial

Energy

Chemical
