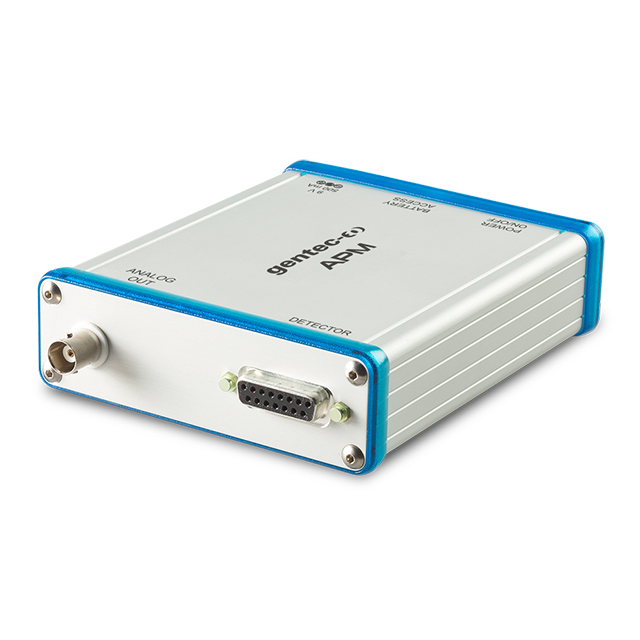

Gentec-EO APM (D) Analog Power Module

Updated:2025-05-28

Brand: Gentec-EO
Model: APM (D)
Description: Gentec-EO APM (D) Analog power module, to interface -B heads with oscilloscopes and lock-in amplifiers.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Gentec-EO APM (D) Analog Power Module Description：

Datasheet(CN) Datasheet(EN)

Key Features

Analog power module for PE, QE8 and UM series

Analog power module, to interface detectors from the PE series, UM series and QE8 series with oscilloscopes and lock-in amplifiers. Power cord included.

Also compatible with LEMO connectors

To use the analog power module with a M6 series detector, you may order a LEMO-to-DB15 adaptor (part number C201949).

Specifications

Controller and GUI specifications
Analog output	BNC
External trigger	None
Battery type	9 V
External power supply	9 VDC 1.66 A
Physical characteristics
Dimensions	101.6W x 30.5H x 127D mm
Weight	0.424 kg
