Gentec-EO P-LINK-4 (USB) PC Interface

Gentec-EO P-LINK-4 (USB) PC Interface Description：

Datasheet(CN) Datasheet(EN) User's Manual PC-Gentec-EO User's Manual

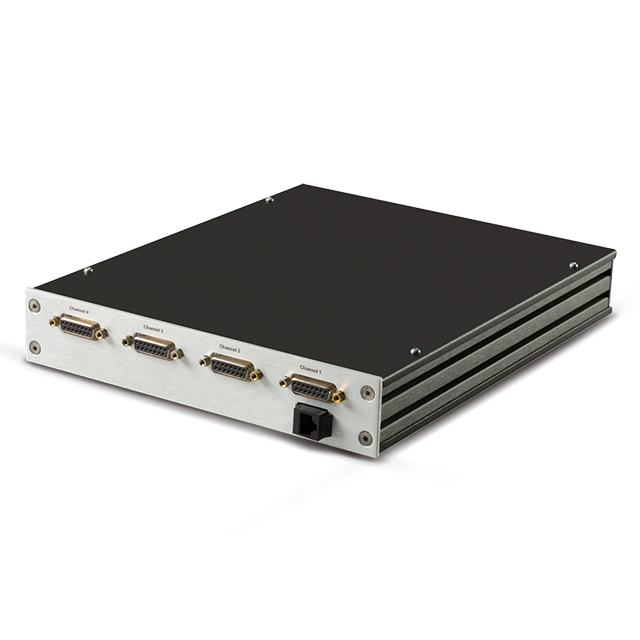

Gentec-EO P-LINK-4 (USB) PC interface for power measurement. Four channels.

Use it with our included PC-Gentec-EO software

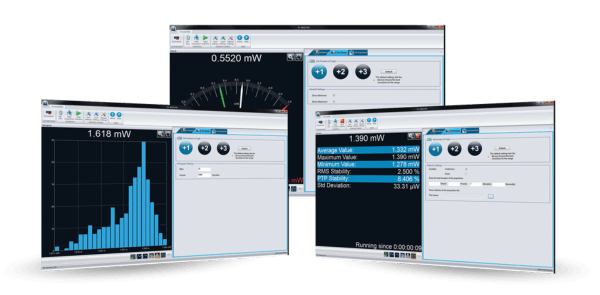

Read your measurements directly on your PC thanks to our free proprietary software PC-Gentec-EO. The software supports the following product series: P-LINK, HP, INTEGRA, U-LINK, and MAESTRO.

Practical displays: real-time, scope, needle, averaging, histogram, and statistics

Useful features such as data logging and correction factors

Many statistics available: current value, average value, maximum value, minimum value, RMS stability, PTP stability, repetition rate, average power, and STD deviation

Leverage serial commands

Use our serial commands to communicate directly with the meter without using Gentec-EO's software. You can do so using a terminal emulator software, like PuTTY, or you can just integrate them directly into your own software. All essential functions of the meter are covered by a command. Refer to the user manual of the meter for the list of all commands available.

Build your own software

Suit your unique laser application requirements

Automate your measurements

Key Features

Reads all power detectors types

Thermopiles and photo detectors of the PH100 & PH20 series

Multi-channel capabilities

Available with 1 or 4 channels

PC-based

Connects to your PC with included software

Small size

Only 91 mm (L) x 57 mm (W) x 36 (H)

Serial commands

Serial commands are available on both versions to let you take full control

Real-time statistical functions

Max, min, average, standard deviation, RMS and PTP stability, pulse # and repetition rate

Specifications
