Ophir SP402S Highest Resolution Laser Beam Profiler

Ophir SP402S Highest Resolution Laser Beam Profiler Description：

Datasheet BeamGage Datasheet Drawing

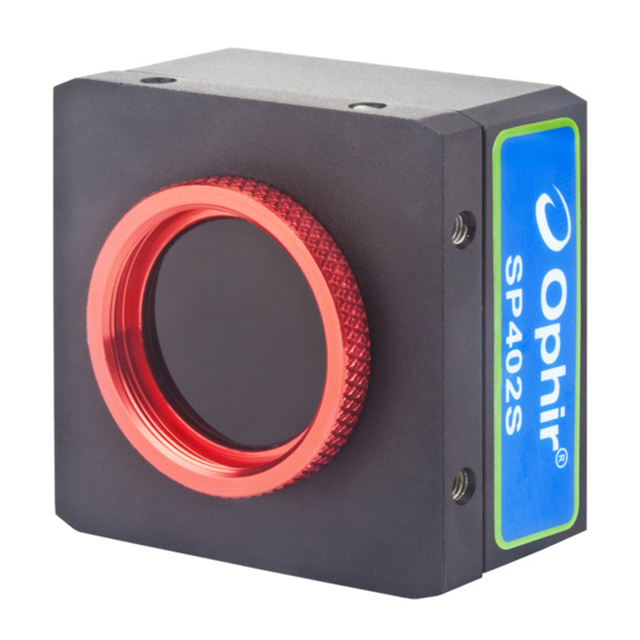

SP402S USB Large Format 4512 x 4512 CMOS 190-1100 nm, Highest Resolution Laser Beam Profiler

USB 3.1 Global Shutter CMOS, high resolution, large sensor camera.

Large 1.1” format

4512 x 4512 pixel resolution with a 2.74 µm pitch

USB 3.1 communication interface

BeamGage Standard or Professional software included

Drawing

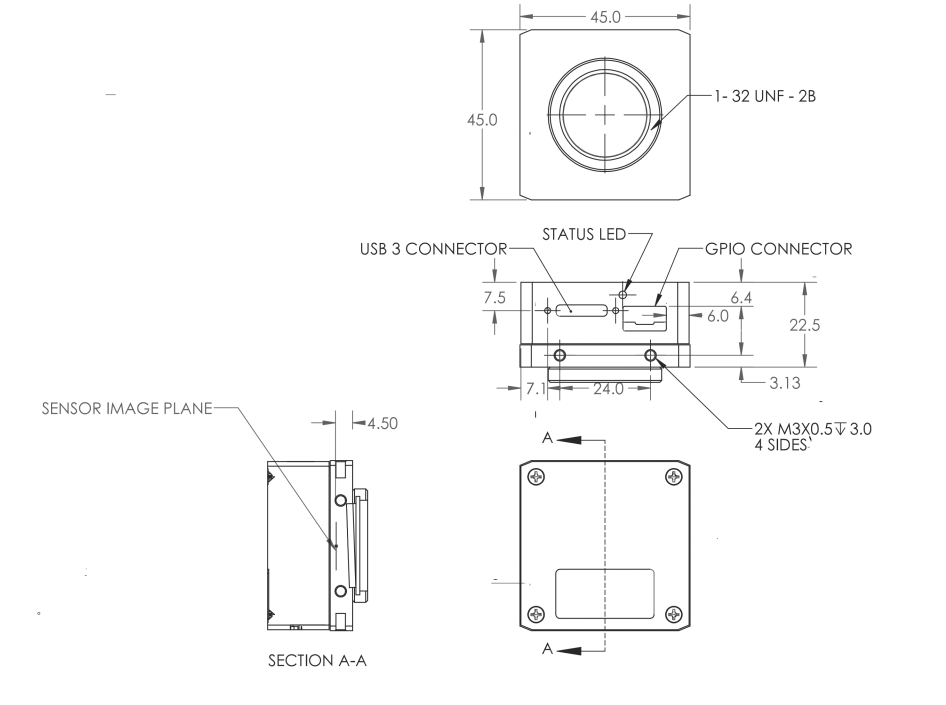

SP402S Drawing

Specifications

• Product Name
  SP402S
• Spectral Range
  190-1100 nm
• Beam Size
  27μm to 12.3 mm
• Communication Interface
  USB 3.1
• Sensor Type
  Silicon CMOS, Back Illuminated
• Compatible Light Sources
  CW, Pulsed
• Active Area
  12.3 X 12.3 mm
• Sensor Recess
  4.5mm
• Elements
  4512 x 4512
• Effective Pixel Pitch
  2.74µm
• Dynamic Range
  67 dB
• Full Resolution Frame Rate
  11 fps
• CE Compliance
  Yes
• UKCA Compliance
  Yes
• China RoHS Compliance
  Yes
