Keller AG Series 7LHP Pressure Transducers

Updated:2025-07-13

Brand: Keller AG
Model: Series 7LHP
Description: The high-pressure transducers of the 7LHP series have a robust housing made of stainless steel, giving them optimum long-term stability for a range of OEM applications. The metal diaphragm is welded o
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Keller AG Series 7LHP Pressure Transducers Description：

Datasheet User's Manual

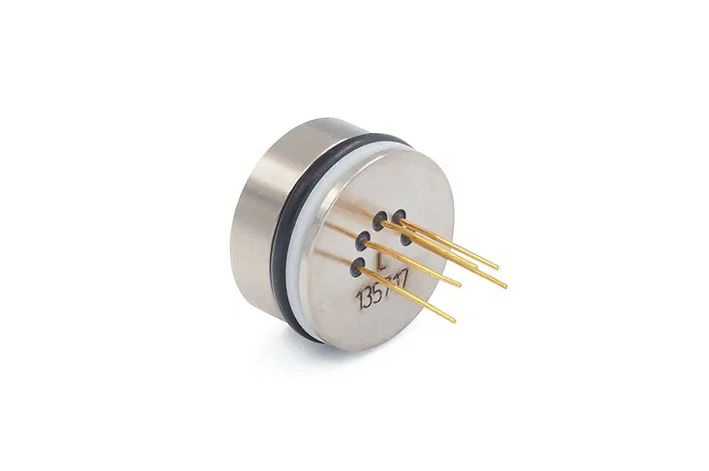

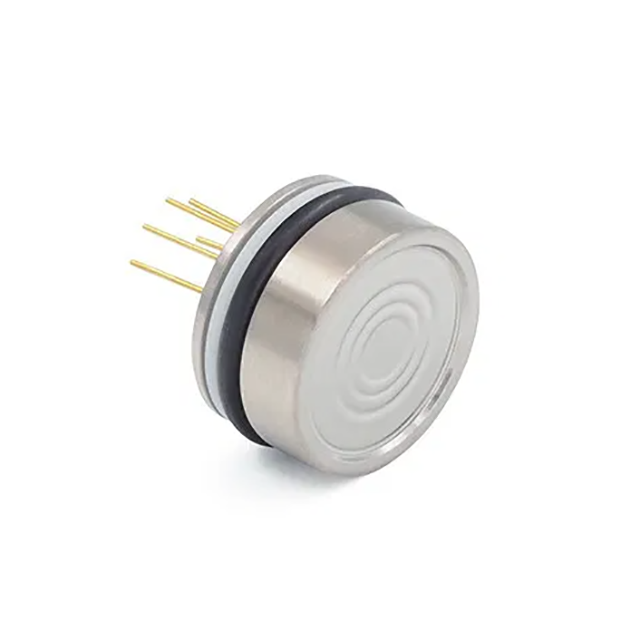

The high-pressure transducers of the 7LHP series have a robust housing made of stainless steel, giving them optimum long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.

Pressure Ranges：0…100 to 0…2000 bar

Accuracy：± 0,5 %FS

Long Term Stability：± 0,25 %FS

Dimensions：⌀ 15 mm x 8 mm

Temperature Range：-55…180 °C

Material：Steel 1.4435, Inconel 718, Titanium

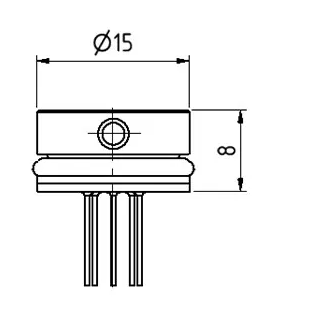

Sketch
