Keller AG Series 9L Pressure Transducers

Updated:2025-07-13

Brand: Keller AG
Model: Series 9L
Description: The pressure transducers of the 9L series have a compact, robust housing made of stainless steel, giving them outstanding long-term stability for a range of OEM applications. The metal diaphragm is w
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Keller AG Series 9L Pressure Transducers Description：

Datasheet User's Manual

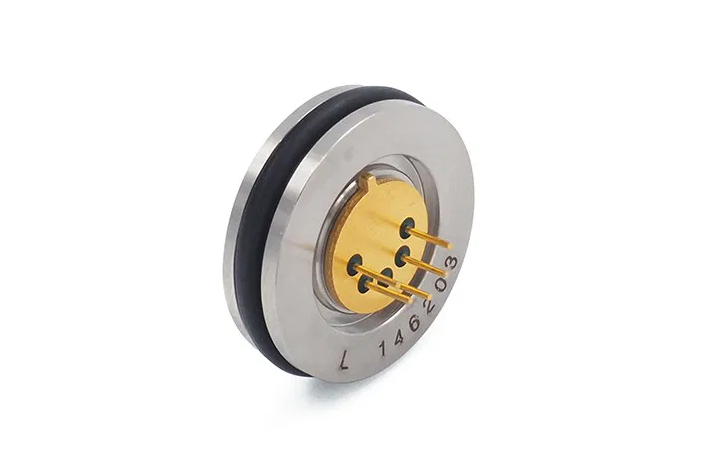

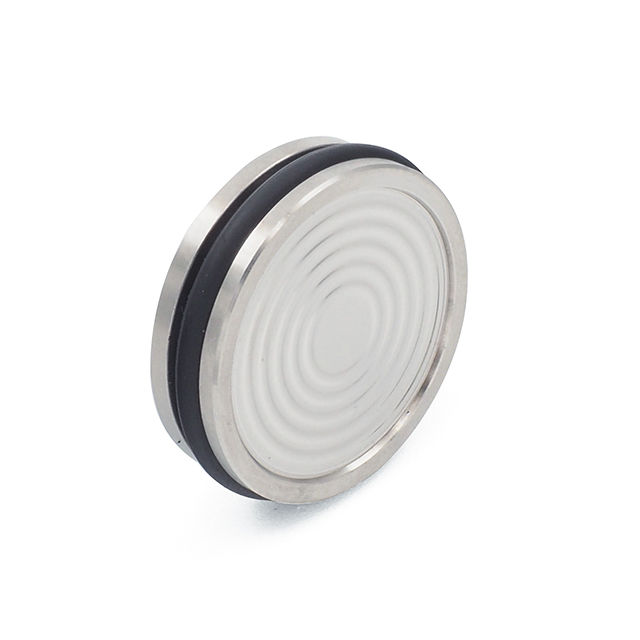

The pressure transducers of the 9L series have a compact, robust housing made of stainless steel, giving them outstanding long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor, which is made of silicon, from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.

Pressure Ranges：0…0,2 to 0…200 bar

Accuracy：± 0,25 %FS

Long Term Stability：± 0,2 %FS

Dimensions：⌀ 19 mm x 5 mm

Temperature Range：-40…125 °C

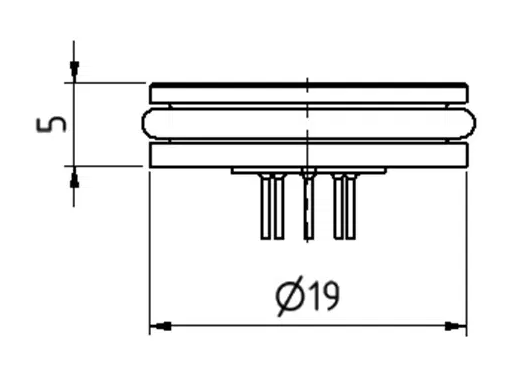

Sketch
