Keller AG Series PD-10L Pressure Transducers

Updated:2025-07-26

Brand: Keller AG
Model: Series PD-10L
Description: The pressure transducers of the PD-10L series have been developed to measure differential pressure. These OEM pressure transducers have a single silicon diaphragm in their interior, which is pressuris
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Keller AG Series PD-10L Pressure Transducers Description：

Datasheet User's Manual

The pressure transducers of the PD-10L series have been developed to measure differential pressure. These OEM pressure transducers have a single silicon diaphragm in their interior, which is pressurised from both sides and measures the pressure difference directly. This design enables them to measure tiny pressure differences even at an extremely high line pressure.

Pressure Ranges：0…0,1 to 0…30 bar

Line Pressure：200 bar

Accuracy：± 0,25 %FS

Long Term Stability：± 0,15 %FS

Dimensions：⌀ 19 mm x 26 mm

Temperature Range：-40…125 °C

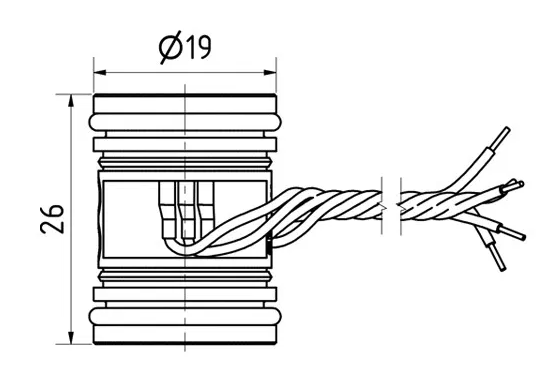

Sketch
