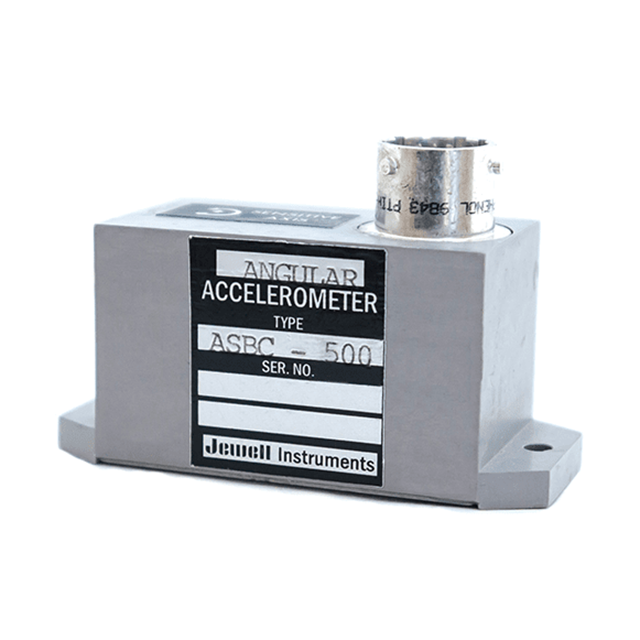

Jewell ASBC Series Angular Accelerometer

Updated:2025-08-13

Brand: Jewell
Model: ASBC Series
Description: The Jewell ASB Series Angular Accelerometer is a general-purpose ±200 radian/second² to ±1000 radian/second² device for industrial, commercial and sensing requirements.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell ASBC Series Angular Accelerometer Description：

Datasheet Drawing

The Jewell ASB Series Angular Accelerometer is a general-purpose ±200 radian/second² to ±1000 radian/second² device for industrial, commercial and sensing requirements.

Specifications

Weight	3 oz
Dimensions	2.60 × 1.10 × 1.24 in
Features	• Bandwidths to 200 Hz • IP65 Seals • Available 28V Aircraft Input • Connector or Pin Configuration • Aerospace Quality and Reliability • Low Output Impedance • High Input Range
Options	• Unipolar Output • 28 VDC Input, 0.2-4.8 VDC Telemetry Output • 28 VDC Input, Biploar, Non-Isolated Output • Low Output Impendance • Lower Ranges Available on Request • Up to 1500 radian/second² Available
Applications	• Antenna Stabilization • Acceleration Measurement for Guidance Control Systems • Vehicle Ride Analysis • Optical System Stabilization • Autopilot System Input • Motor Torque Measurement and Control • Automotive Angular Acceleration Testing • (6 Degrees of Freedom) Flight Simulators • Dyno Testing

Input Range (rad/sec²)¹	±200	±500	±1000
Full Range Output (FRO, Volts ±1.0%)	±5.0	±5.0	±5.0
Non-linearity (%FRO maximum)²	0.50	0.20	0.10
Scale Factor (Volts/rad/sec² nominal)	0.025	0.010	0.005
Scale Factor Temp Sens (PPM/°C maximum)	180	180	180
Bias (rad/sec² maximum)	1.0	4.0	4.0
Bias Temperature Sensor (rad/sec² /°C maximum)	0.05	0.05	0.10
Output Impedance (Ω nominal)	10.0k	4.0k	5.0k
Natural Frequency (Hz nominal)³	70	100	120
Bandwidth (-3dB, Hz nominal)	70	100	120
Input Axis Misalignment (° maximum)	1.0	1.0	1.0
Resolution & Threshold (rad/sec² maximum)	0.005	0.005	0.005
