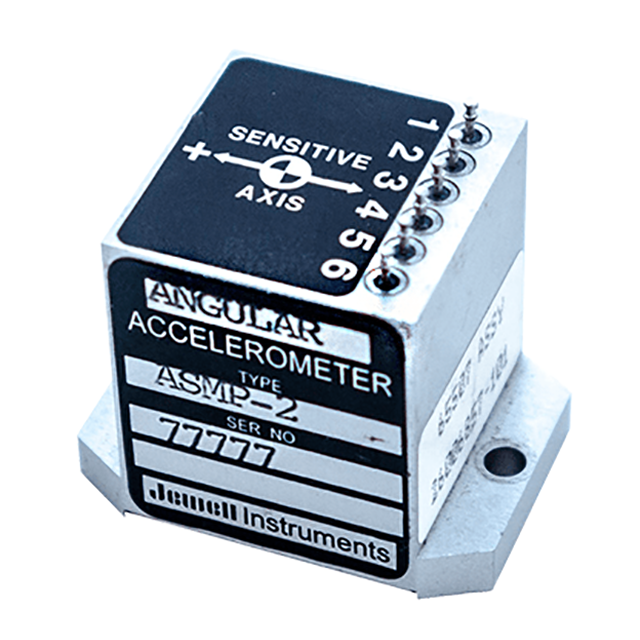

Jewell ASMP Angular Accelerometer

Updated:2025-08-16

Brand: Jewell
Model: ASMP
Description: The Jewell ASMP Angular Accelerometer is configured specifically to yield a combination of miniaturization, high accuracy and ruggedness. The ASMP has been designed to minimize thermal errors associat
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell ASMP Angular Accelerometer Description：

Datasheet Drawing

The Jewell ASMP Angular Accelerometer is configured specifically to yield a combination of miniaturization, high accuracy and ruggedness. The ASMP has been designed to minimize thermal errors associated with outdoor applications. The Jewell ASMP Series is the highest accuracy sensor of its class in the world today.

Specifications

Weight	2 oz
Dimensions	1.50 × 1.05 × 1.39 in
Features	• Bandwidth to 200 Hz • 1.05" Cube Housing Size • ± 15 Standard Input Voltage • Aerospace Quality and Reliability
Applications	• Fatigue Monitoring • Oil Well Drilling • Flight Control Systems • Automotive Angular Accelerometer Testing • Antenna Stabilization • Autopilot System Testing • Optical System Stabilization • Missile Orientation • Fire Control

Input Range (rad/sec²)¹	±200	±500	±1000
Full Range Output (FRO, Volts ±1.0%)	±5.0	±5.0	±5.0
Non-linearity (%FRO maximum)²	0.5	0.2	0.1
Scale Factor (Volts/rad/sec² nominal)	0.025	0.01	0.005
Scale Factor Temp Sens (PPM/°C maximum)	180	180	180
Bias (rad/sec² maximum)	±1.0	±4.0	±4.0
Bias Temperature Sensor (rad/sec² /°C maximum)	0.40	0.40	0.40
Bandwidth (-3dB, Hz nominal)	70	100	120
Alignment (True Sensitivity Axis to Mount, ° maximum)	±1.0	±1.0	±1.0
Resolution & Threshold (rad/sec² maximum)	0.004	0.010	0.020
