Keller AG Series 20S Pressure Transducers

Updated:2025-08-02

Brand: Keller AG
Model: Series 20S
Description: The pressure transducers of the 20S series with threaded connection offer high long-term stability and overload resistance as well as optimised temperature behaviour. The compact stainless steel housi
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Keller AG Series 20S Pressure Transducers Description：

Datasheet User's Manual

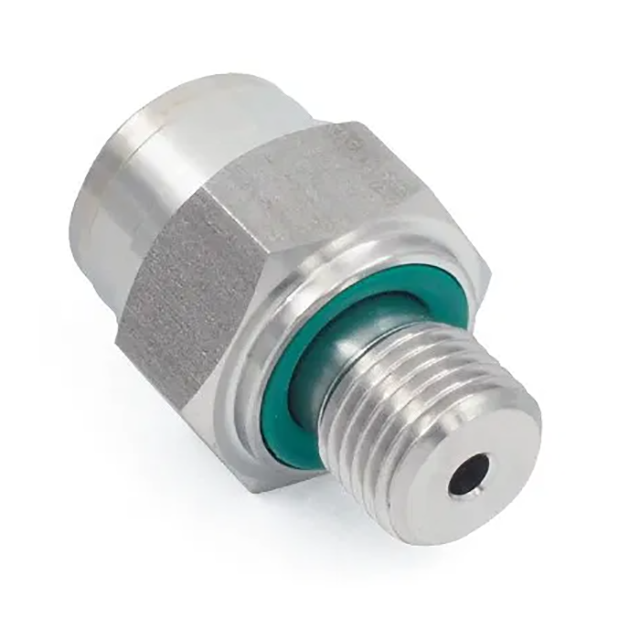

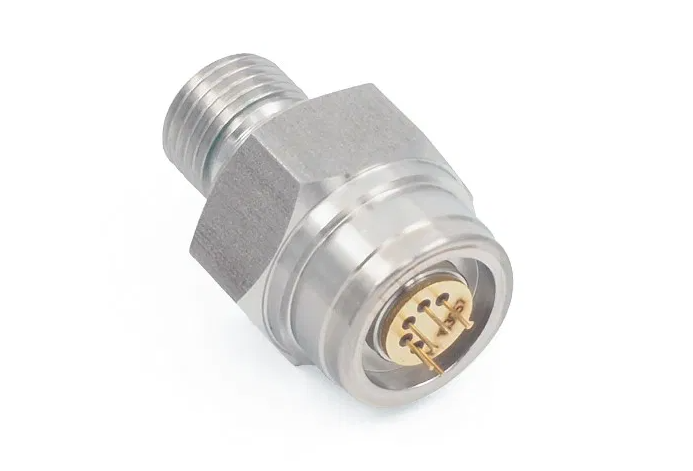

The pressure transducers of the 20S series with threaded connection offer high long-term stability and overload resistance as well as optimised temperature behaviour. The compact stainless steel housing without internal seals is suitable for various OEM applications. Each pressure transducer is calibrated via pressure and temperature and supplied with a detailed calibration sheet.

Pressure Ranges：0…0,3 to 0…1000 bar

Accuracy：± 0,25 %FS

Pressure Connection：G1/4, 1/4-18NPT

Dimensions：HEX22 x 34mm

Temperature Range：-10…80 °C

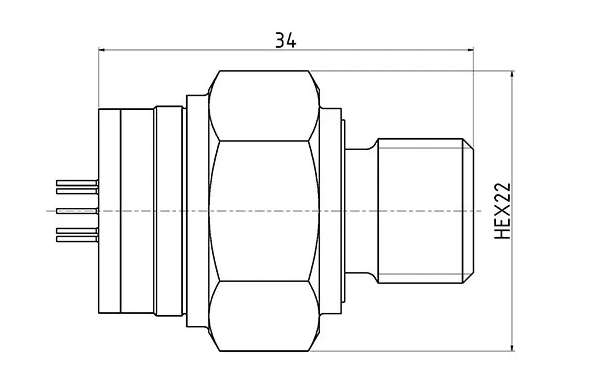

Sketch
