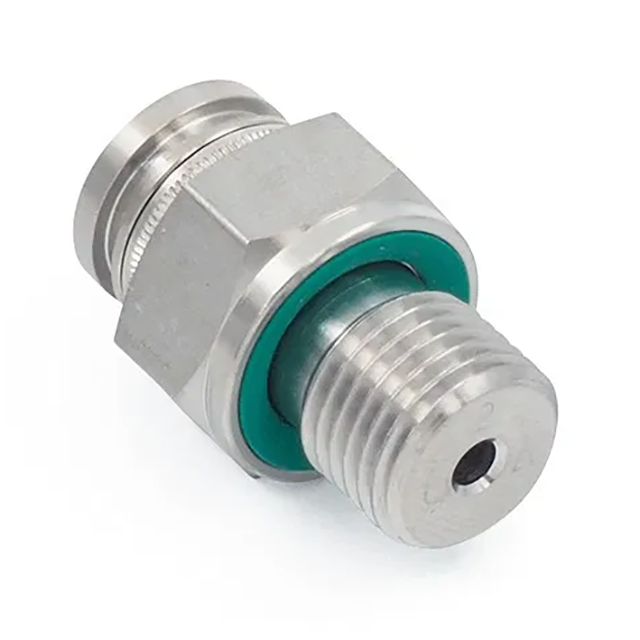

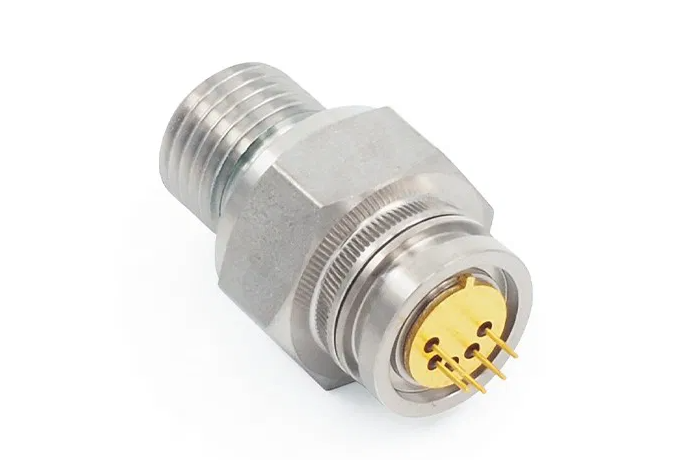

Keller AG Series 20 Pressure Transducers

Updated:2025-08-02

Brand: Keller AG
Model: Series 20
Description: The pressure transducers of the 20 series with threaded connection offer high long-term stability and overload resistance as well as optimised temperature behaviour. The compact, robust stainless stee
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Keller AG Series 20 Pressure Transducers Description：

Datasheet User's Manual

The pressure transducers of the 20 series with threaded connection offer high long-term stability and overload resistance as well as optimised temperature behaviour. The compact, robust stainless steel housing without internal seals is suitable for various OEM applications. Each pressure transducer is calibrated via pressure and temperature and supplied with a detailed calibration sheet.

Pressure Ranges：0…5 to 0…600 bar

Accuracy：± 0,5 %FS

Pressure Connection：G1/4, 1/4-18NPT

Dimensions：HEX19 x 32mm

Temperature Range：-10…80 °C

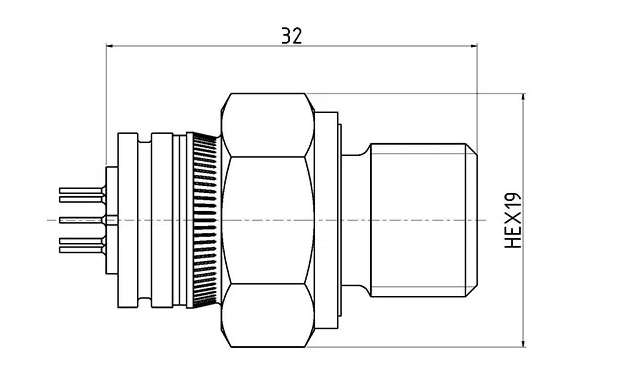

Sketch
