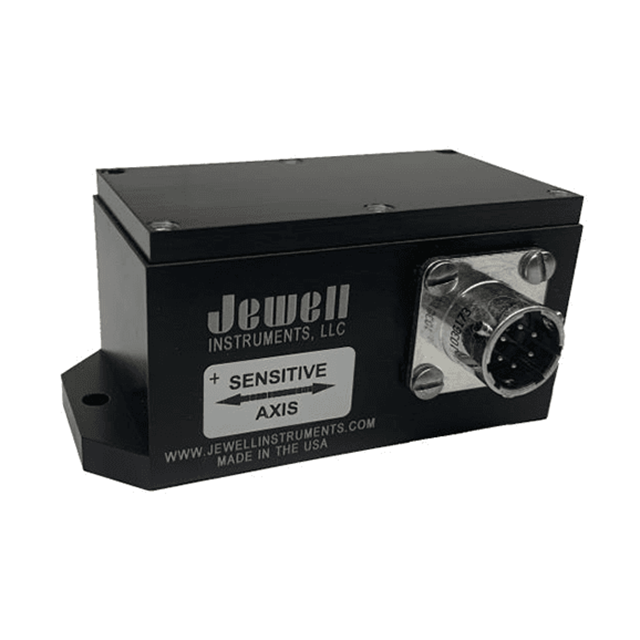

Jewell LSLR Ultra-Low Range Accelerometer

Updated:2025-09-21

Brand: Jewell
Model: LSLR
Description: The LSLR is a very rugged, ultra-low, single-axis accelerometer designed for peak performance in extreme conditions. The fluid damped mechanism delivers superior noise rejection in high shock and vibr
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell LSLR Ultra-Low Range Accelerometer Description：

Datasheet Drawing

The LSLR is a very rugged, ultra-low, single-axis accelerometer designed for peak performance in extreme conditions. The fluid damped mechanism delivers superior noise rejection in high shock and vibration environments as well as excellent output stability. Units are available with a 6-pin connector, pin-terminals, or flying leads. Available outputs include ±5V, 0-5V, and 4-20mA. Custom input ranges, filters, and temperature sensor are also available on request.

Specifications

Input Range (g)	±0.1	±0.25	±0.5	±1	±2
Full Range Output (FRO VDC 0.5%)¹	±5	±5	±5	±5	±5
Non-linearity (% FRO, maximum)²	0.02	0.02	0.02	0.02	0.05
Scale Factor (V/g, nominal)	50.0	20.0	10.0	5.0	2.5
Scale Factor Temperature Sensitivity (PPM/°C maximum)	300	100	60	60	60
Bandwidth (-3 dB), (Hz nominal)	2	15	20	30	30
Transverse Axis Misalignment (°maximum)	±0.25	±0.5	±0.5	±0.5	±0.5
Bias Range (g)	±0.04	±0.01	±0.02	±0.02	±0.02
Bias Temp Sensitivity (μg/°C, maximum)	50	50	50	50	50
Resolution & Threshold (μg)³	1	1	1	1	1

Weight	8.81 oz
Dimensions	1.60 × 3.64 × 1.68 in
Features	• Extremely Rugged • ±0.1g, ±0.25g, ±0.5g, ±1g & ±2g Ranges • High Performance • Temperature Sensor Available • ±5V, 0-5V or 4-20mA Output • RoHS Compliant
Applications	• Seismic Monitoring • Geophysical Measurements • Ultra-Low Acceleration Analysis • Civil Engineering • Flight Testing • Robotics

Input Voltage Range (VDC)	12 to 18
Input Current (mA, maximum)	30
Output Impedance (Ω, nominal)	1
Noise (3 Hz to 300 kHz, Vrms, maximum)	0.002
