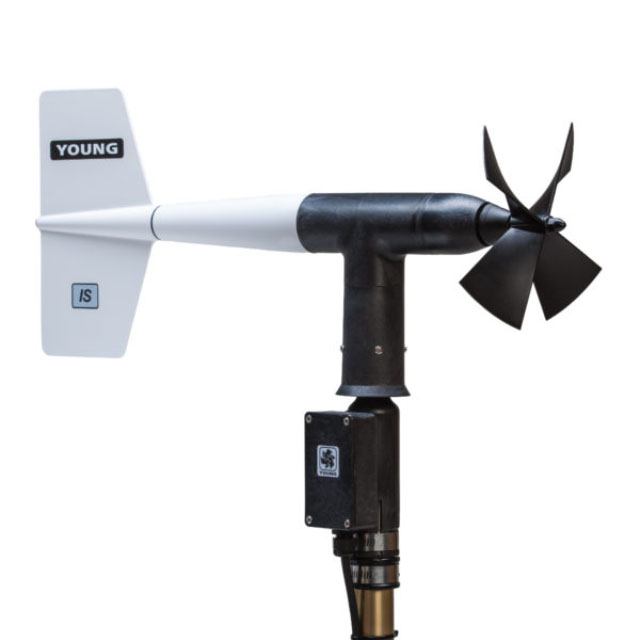

05501LM Intrinsically Safe Wind Monitor

Updated:2023-02-08

Brand: R.M.Young
Model: 05501LM
Description: The intrinsically safe Wind Monitor-IS is a high performance wind sensor approved for use in hazardous areas.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

05501LM Intrinsically Safe Wind Monitor Description：

User's manual

The YOUNG Model 05501LM Wind Monitor-IS measures horizontal wind speed and direction and can safely be used in Class 1, Division 1, Group A,B,C,D hazardous areas.* A four-blade helicoid propeller, used to measure wind speed, generates an AC sine wave signal upon rotation. Wind direction is determined by a vane attached to a precision potentiometer inside an internal housing. Internal circuitry converts the signals into isolated, 4 to 20 mA current outputs. The instrument is constructed of UV stabilized plastic with stainless steel and anodized aluminum fittings. The instrument installs on standard 1-inch IPS pipe. A mounting orientation ring is included that engages with the base of the sensor to retain orientation when the sensor is removed for maintenance. Terminations are made in a junction box at the base of the sensor by small clamp-style connectors (no special connectors are required).

Tested in accordance with Safety Standard UL 913, Intrinsically Safe Apparatus and Associated Apparatus for use in Class I, II, and III Division I, Hazardous (classified) locations. Must be properly installed with approved Intrinsically Safe barrier.

05501LM Intrinsically Safe Wind Monitor Specification：

Range：	Wind speed: 0-50 m/s (112 mph) Azimuth: 360° mechanical, 355° electrical (5° open)
Accuracy：	Wind speed: ±0.3 m/s (0.6 mph) or ±1% Wind direction: ±3°
Threshold：	Propeller: 1.0 m/s (2.2 mph) Vane: 1.1 m/s (2.4 mph)
Dynamic Response：	Propeller distance constant (63% recovery) 2.7 m (8.9 ft) Vane delay distance (50% recovery) 1.3 m (4.3 ft) Damping ratio: 0.3 Damped natural wavelength: 7.4 m (24.3 ft) Undamped natural wavelength: 7.2 m (23.6 ft)
Signal Outputs：	4 to 20 mA full scale for wind speed and wind direction
Power Requirement：	8-30 VDC (40 mA max.)
Operating Temperature：	-50 to 50°C
Dimensions：	Overall height: 37 cm (14.6 in) Overall height: 37 cm (14.6 in) Propeller: 18 cm (7 in) diameter Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
Weight：	1.0 kg (2.2 lbs)
Shipping Weight：	2.3 kg (5 lbs) Nominal values, determined in accordance with ASTM standard procedures.
