1000W-LP2-34 7Z02774 High power water-cooled thermal sensor

Updated:2023-06-21

Brand: Ophir
Model: 1000W-LP2-34
Description: The 1000W-LP2-34 is a water cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 34mm aperture and can measure power from 5W to 1000W and energy
Data download

Feedback
WeChat

QQ

Online Service

Product Details

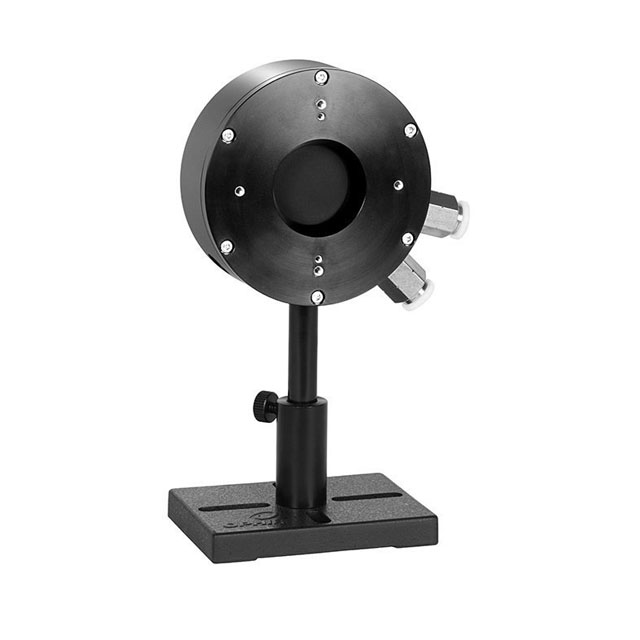

1000W-LP2-34 High power water-cooled thermal sensor：

The 1000W-LP2-34 is a water cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 34mm aperture and can measure power from 5W to 1000W and energy from 400mJ to 300J. Its high damage threshold LP2 coating covers the spectral range 0.35 – 2.2µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

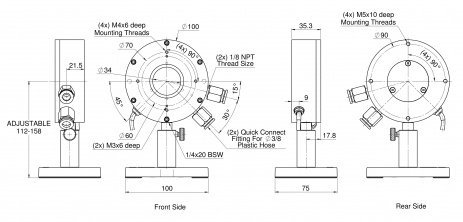

1000W-LP2-34 Drawing of high power water cooled thermal sensor：

1000W-LP2-34 Drawing

1000W-LP2-34 Specification for high power water cooled thermal sensor：

Absorber Type	Broadband
Aperture	Ø34mm
Spectral Range	0.35-2.2µm
Power Range	5W-1000W
Energy Range	400mJ-300J
Backscattered Power	N.A.
Dimensions	Ø100 W x 35 D (mm)
Max Pulse Energy	300J
Max Average Power Density	10kW/cm²
Response Time	2.5 s
Max Energy Density (for <100ns)	0.1J/cm²
Max Energy Density (for 2ms)	130J/cm²
Max Average Power	1000W
BeamTrack Functions	N.A.
Compliance	CE, China RoHS
