150C-SH 7N77023 Thermal Power/Energy Laser Measurement Sensor

Updated:2023-06-02

Views:1240

  • Brand:Ophir
  • Model:150C-SH
  • Description: P/N 7N77023 replaces P/N 77023 The 150C-SH is a thermal power/energy laser measurement sensor with mounting threads and with an 18mm aperture. It can measure from 60mW to 5W free standing and 60W whe
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

150C-SH 7N77023 Thermal Power/Energy Laser Measurement Sensor Description:

P/N 7N77023 replaces P/N 77023 The 150C-SH is a thermal power/energy laser measurement sensor with mounting threads and with an 18mm aperture. It can measure from 60mW to 5W free standing and 60W when heat sinked. It can measure energy from 20mJ to 100J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20µm.

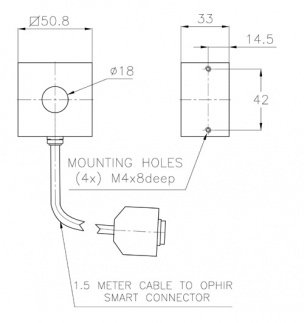

150C-SH 7N77023 Thermal Power/Energy Laser Measurement Sensor Drawing:

150C-SH Drawing

150C-SH 7N77023 Thermal Power/Energy Laser Measurement Sensor Specifications:

Aperture Ø18mm
Spectral Range 0.19-20µm
Power Range 60mW-150W
Energy Range 20mJ-100J
Dimensions 51 L x 51 W x 33 D (mm)
Max Average Power Density 20kW/cm² at 60W
Response Time 1.2 s
Max Energy Density(for <100ns) 0.3J/cm²
Max Energy Density(for 2ms) 10J/cm²
Max Average Power 150W for 1min free standing
Communication N.A.
