150C-UAF OEM Thermal Power/energy Laser Measurement Sensor

Updated:2023-06-02

Brand：Ophir
Model：150C-UAF
Description: The 150C-UAF is an OEM thermal power/energy laser measurement sensor with an 18mm aperture. It can measure from 60mW to 5W free standing and 60W when heat sinked. It can measure energy from 20mJ to 10
Data download

Feedback
WeChat

QQ

Online Service

Product Details

150C-UAF OEM Thermal Power/energy Laser Measurement Sensor Description：

The 150C-UAF is an OEM thermal power/energy laser measurement sensor with an 18mm aperture. It can measure from 60mW to 5W free standing and 60W when heat sinked. It can measure energy from 20mJ to 100J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20µm. It has analog and RS232 output.

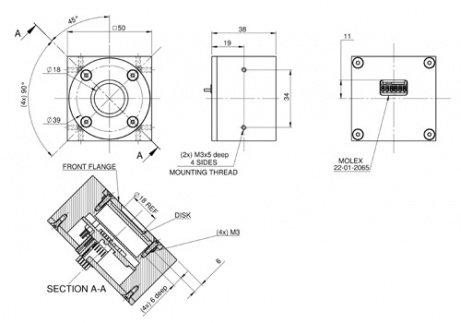

150C-UAF OEM Thermal Power/energy Laser Measurement Sensor Drawing：

150C-UAF Drawing

150C-UAF OEM Thermal Power/energy Laser Measurement Sensor Specifications：

Aperture	Ø18mm
Spectral Range	0.19-20µm
Power Range	60mW-150W
Energy Range	20mJ-100J
Dimensions	50 L x 50 W x 38 D (mm)
Max Average Power Density	20kW/cm² at 60W
Response Time	1.2 s
Max Energy Density(for <100ns)	0.3J/cm²
Max Energy Density(for 2ms)	10J/cm²
Max Average Power	150W for 1min free standing
Communication	RS232, Analog
