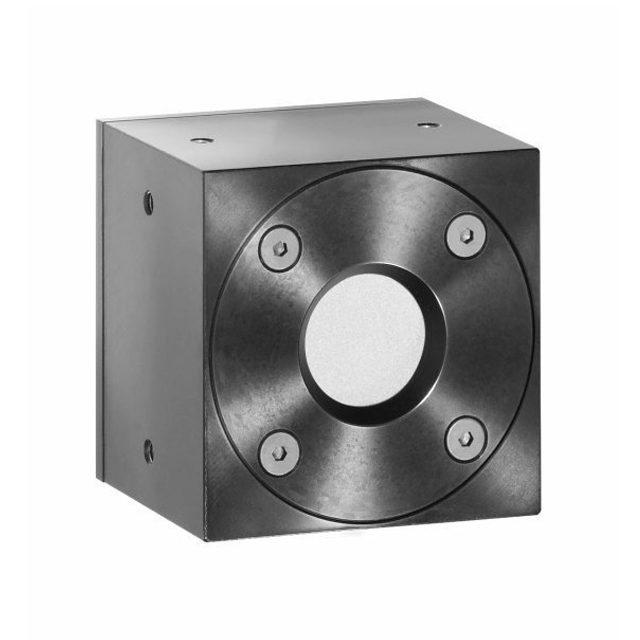

150W-UAE OEM Thermal Power/Energy Laser Sensor

Updated:2023-06-02

Brand：Ophir
Model：150W-UAE
Product description: The 150W-UAE is a water cooled OEM thermal power/energy laser sensor with an 18mm aperture. It can measure from 100mW to 150W. It can measure energy from 50mJ to 100J. It has the spectrally flat broad
Data download

Feedback
WeChat

QQ

Online Service

product details

150W-UAE OEM Thermal Power/Energy Laser Sensor Description：

The 150W-UAE is a water cooled OEM thermal power/energy laser sensor with an 18mm aperture. It can measure from 100mW to 150W. It can measure energy from 50mJ to 100J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20µm. It has Ethernet output.

150W-UAE OEM Thermal Power/Energy Laser Sensor Drawing：

150W-UAE Drawing

150W-UAE OEM Thermal Power/Energy Laser Sensor Specifications：

Aperture	Ø18mm
Spectral Range	0.19-20µm
Power Range	100mW-150W
Energy Range	50mJ-100J
Dimensions	50 L x 50 W x 38 D (mm)
Max Average Power Density	12kW/cm² at 150W
Response Time	1.2 s
Max Energy Density(for <100ns)	0.3J/cm²
Max Energy Density(for 2ms)	10J/cm²
Max Average Power	150W water cooled free standing
Communication	Ethernet
