20C-BB-12-SH 7Z02602 Thermal Power/Energy Laser Measurement Sensor

Updated:2023-06-01

Brand：Ophir
Model：20C-BB-12-SH
Product description: The 20C-BB-12-SH is a compact thermal power/energy laser measurement sensor with dimensions only 38x38x14mm. It has a 12mm aperture and can measure from 10mW to 4W stand alone and to 20W when heat sin
Data download

Feedback
WeChat

QQ

Online Service

product details

20C-BB-12-SH 7Z02602 Thermal Power/Energy Laser Measurement Sensor Description：

The 20C-BB-12-SH is a compact thermal power/energy laser measurement sensor with dimensions only 38x38x14mm. It has a 12mm aperture and can measure from 10mW to 4W stand alone and to 20W when heat sinked. It can measure energy from 6mJ to 10J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11µm.

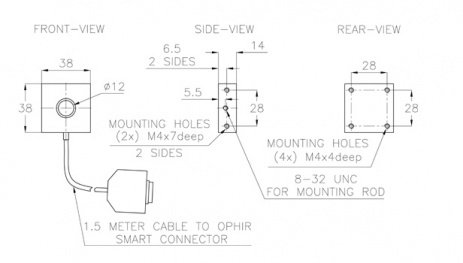

20C-BB-12-SH 7Z02602 Thermal Power/Energy Laser Measurement Sensor Drawing：

20C-BB-12-SH Drawing

20C-BB-12-SH 7Z02602 Thermal Power/Energy Laser Measurement Sensor Specifications：

Aperture	Ø12mm
Spectral Range	0.19-11µm
Power Range	10mW-20W
Energy Range	6mJ-10J
Dimensions	38 L x 38 W x 14 D (mm)
Max Average Power Density	23kW/cm² at 20W
Response Time	0.8 s
Max Energy Density(for <100ns)	0.3J/cm²
Max Energy Density(for 2ms)	10 J/cm²
Max Average Power	20W heat sinked
Communication	N.A.
