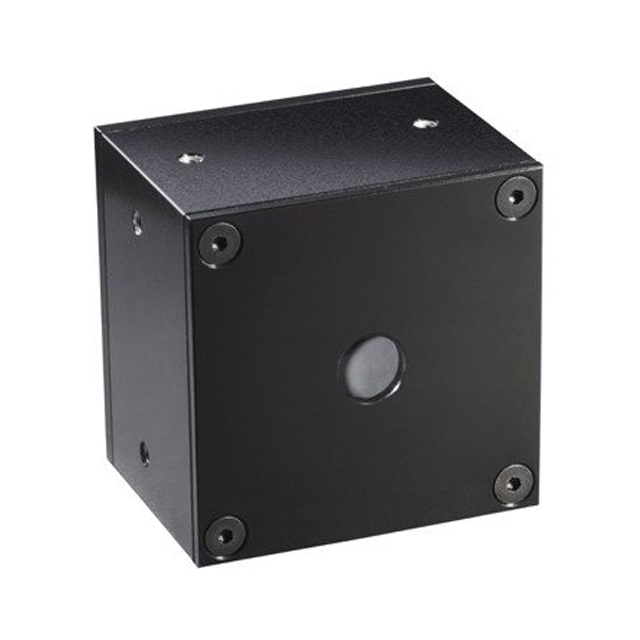

3A-UAF Thermal Power/Energy Laser Measurement Sensor

Updated:2023-06-01

Brand：Ophir
Model：3A-UAF
Product description: The 3A-UAF is a compact thermal power/energy laser measurement sensor. It has a 9.5mm aperture and can measure very low powers from 100µW to 3W. It can measure energy from 20µJ to 2J. It has the spect
Data download

Feedback
WeChat

QQ

Online Service

product details

3A-UAF Thermal Power/Energy Laser Measurement Sensor Description：

The 3A-UAF is a compact thermal power/energy laser measurement sensor. It has a 9.5mm aperture and can measure very low powers from 100µW to 3W. It can measure energy from 20µJ to 2J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20µm. It has analog and RS232 output and a built in amplifier.

3A-UAF Thermal Power/Energy Laser Measurement Sensor Drawing：

3A-UAF Drawing

3A-UAF Thermal Power/Energy Laser Measurement Sensor Specifications：

Aperture	Ø9.5mm
Spectral Range	0.19-20µm
Power Range	100µW-3W
Energy Range	20μJ-2J
Dimensions	50 L x 50 W x 38 D (mm)
Max Average Power Density	1000W/cm²
Response Time	1.8 s
Max Energy Density(for <100ns)	0.3J/cm²
Max Energy Density(for 2ms)	2J/cm²
Max Average Power	3W
Communication	RS232, Analog
