5000W-LP2-50 7Z02754 High power water-cooled thermal sensor

Updated:2023-06-21

Brand: Ophir
Model: 5000W-LP2-50
Description: The 5000W-LP2-50 is a water cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 50mm aperture and can measure power from 20W to 5000W. Its high
Data download

Feedback
WeChat

QQ

Online Service

Product Details

5000W-LP2-50 High power water-cooled thermal sensor：

The 5000W-LP2-50 is a water cooled thermal power/energy laser measurement sensor for high power density and long pulse lasers. It has a 50mm aperture and can measure power from 20W to 5000W. Its high damage threshold LP2 coating covers the spectral range 0.35 - 2.2µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

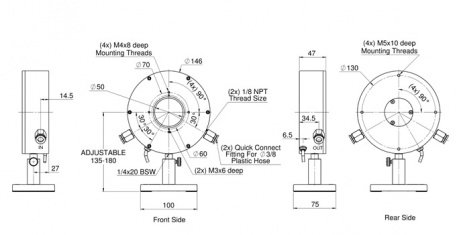

5000W-LP2-50 Drawing of high power water cooled thermal sensor：

5000W-LP2-50 Drawing

5000W-LP2-50 Specification for high power water cooled thermal sensor：

Absorber Type	LP2
Aperture	Ø50mm
Spectral Range	0.35-2.2µm
Power Range	20W-5000W
Energy Range	N.A.
Backscattered Power	N.A.
Dimensions	Ø146 W x 47 D (mm)
Max Pulse Energy	N.A.
Max Average Power Density	2.5kW/cm²
Response Time	3 s
Max Energy Density (for <100ns)	0.1J/cm²
Max Energy Density (for 2ms)	130J/cm²
Max Average Power	5000W
BeamTrack Functions	N.A.
Compliance	CE, China RoHS
