ESI TEST 595 Pro Model Automotive Meter W/PC Interface

ESI TEST 595 Pro Model Automotive Meter W/PC Interface Description：

Datasheet

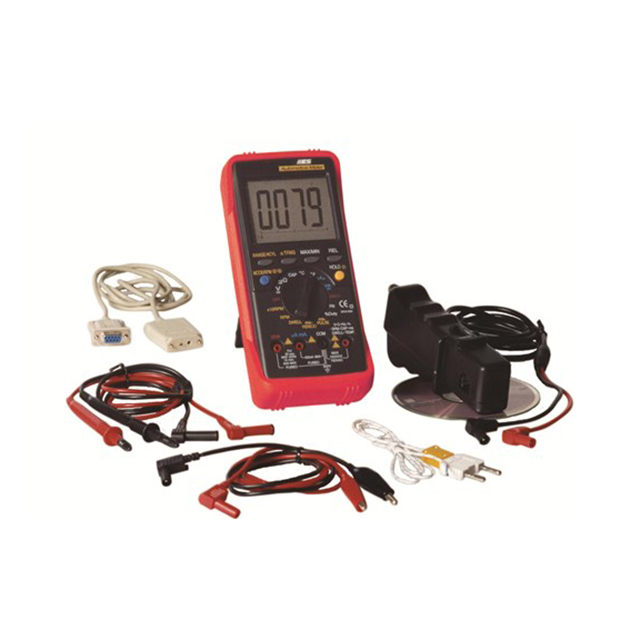

The #595 is a premier automotive diagnostic tool. It is equipped with the latest testing capabilities, including Milliseconds Pulse Width, for measuring the on-time of fuel injectors. The #595 Features a huge LCD display with a bar graph for easy viewing. This meter can be interfaced with your PC or Notebook computer for enhanced diagnostics and data presentation. The software and computer interface cable are included for free! the #595 includes two sets of test leads, RPM pick-up, temperature probe, software CD, interface cable, protective holster, 9-volt battery, instruction manual, and hard storage case. Inductive RPM pick-up features a five-position, adjustable sensitivity switch.

Features:

CATIII 1000 Volt Approved & Safety Rated

58 Test Ranges, 16 Test Functions

Huge LCD Display w/Analog Bar Graph, Large Digits, and Brilliant Backlighting

mS Pulse Width for furl Injector ON-TIME

Max/Min Function Captures High/Low Readings For Better Diagnostic Capability

4 Step Adjustable Trigger Levels

RS-232 PC Interface

Desirable 20 Amp Fuse Test Range

Special Access panels For Fuses

hard Storage Case For Safe Storage

Auto Power-Off, Saves Batteries

Safe For Use On Hybrids and EV's

Test Ranges:

DC Volts: 0-400mV, 4V, 40V, 400V, 1000V

AC Volts: 0-400mV, 4V, 40V, 400V, 750V

DC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A

AC Amps: 0-400uA, 4mA, 40mA, 400mA, 4A, 20A

Ohms: 0-400, 4K, 40K, 400K, 4M, 40M

Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF

RPM 4 : 0-4,000 RPM, 12,000 RPM x 10

RPM2/DIS: 0-4,000 RPM, 6,000 RPM x 10

Dwell: 1,2,3,4,5,6,8,10, & 12 cyl

Frequency: 0-5Hz, 50Hz, 500Hz, 5kHz, 30kHz

Duty Cycle: 0.1% - 99.9%

mS Pulse Width: 2.0mS - 10.0mS

Period: 2.0mS - 20.0mS

Temperature: -4F to 1400F, -20C to 760C

Continuity: Audible Beep

Diode Test: Diode Test
