10 MV/G TRIAXIAL ACCELEROMETERS

AC132 Datasheet

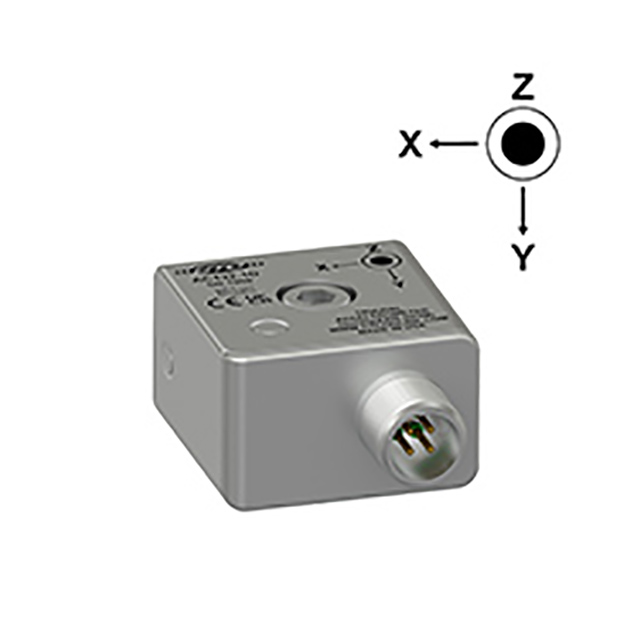

Triaxial Accelerometer, Side Exit 4 Pin Mini-MIL Connector, Follows Cartesian Phase Coordinate System, for Modal & ODS Analysis, 10 mV/g, ±10%

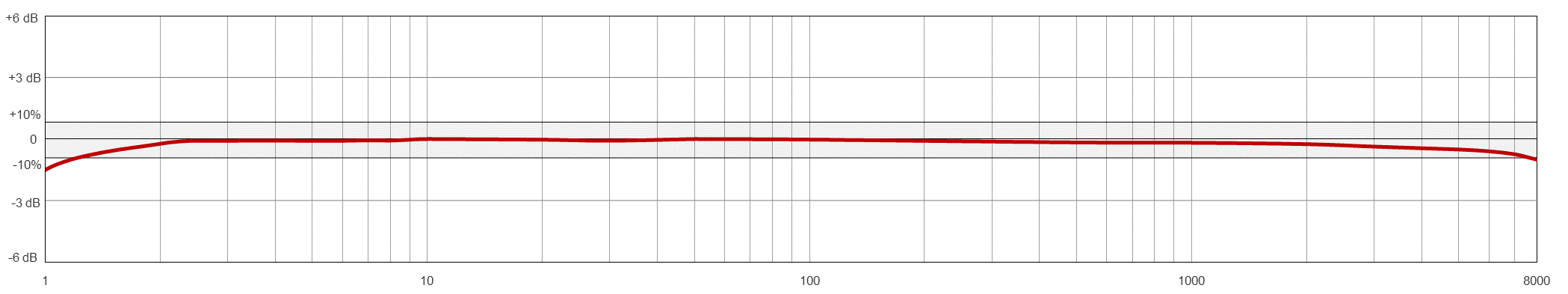

60-480,000 CPM Frequency Response (±3dB)

-58 to 250°F (-50 to 121°C) Temperature Range

Welded, Hermetic Sealing

Collect 3 Channels of Data Simultaneously for Faster Data Collection

Follows Cartesian Coordinate Phase Configuration (Right Hand Rule)

AC232Datasheet

Premium Triaxial Accelerometer, Side Exit 4 Pin Mini-MIL Connector, Follows Cartesian Phase Coordinate System, for Modal & ODS Analysis, 10 mV/g, ±5%

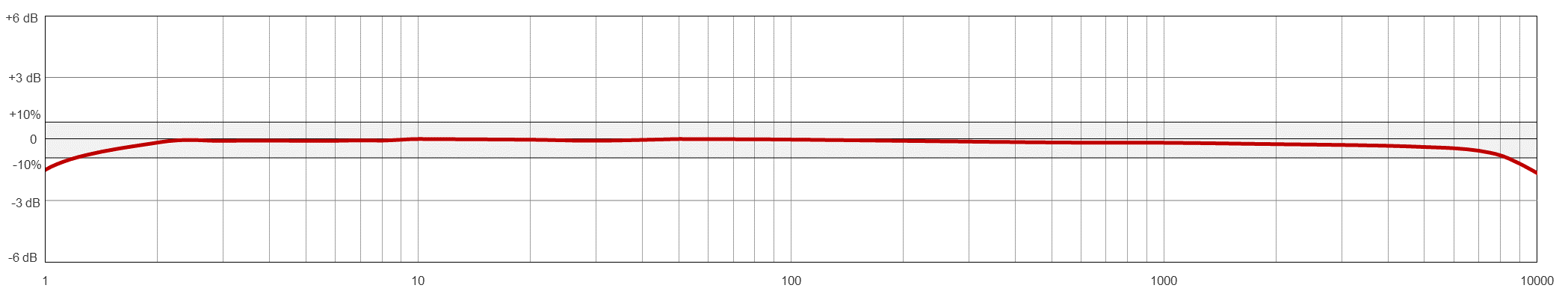

60-600,000 CPM Frequency Response (±3dB)

-65 to 250°F (-54 to 121°C) Temperature Range

Welded, Hermetic Sealing

Collect 3 Axes of Data for Modal Analysis and ODS (Operating Deflection Shape)

Phase conforms to Cartesian Coordinate System (Right Hand Rule)

TRCA330Datasheet

Miniature Industrial Triaxial Accelerometer, Side Exit 4 Pin Mini-MIL Connector, Follows Cartesian Phase Coordinate System, 10 mV/g, ±10%

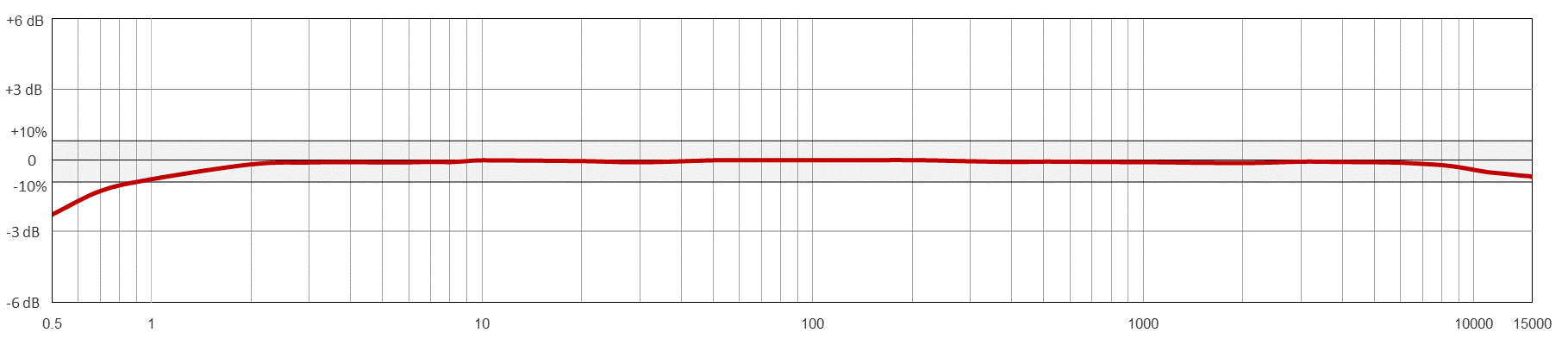

30-900,000 CPM Frequency Response (±3dB)

-65 to 250°F (-54 to 121°C) Temperature Range

Welded, Hermetic Sealing

Collect 3 Channels of Data Simultaneously for Faster Data Collection

Follows Cartesian Coordinate Phase Configuration (Right Hand Rule)
