LOW FREQUENCY, 500 MV/G ACCELEROMETERS

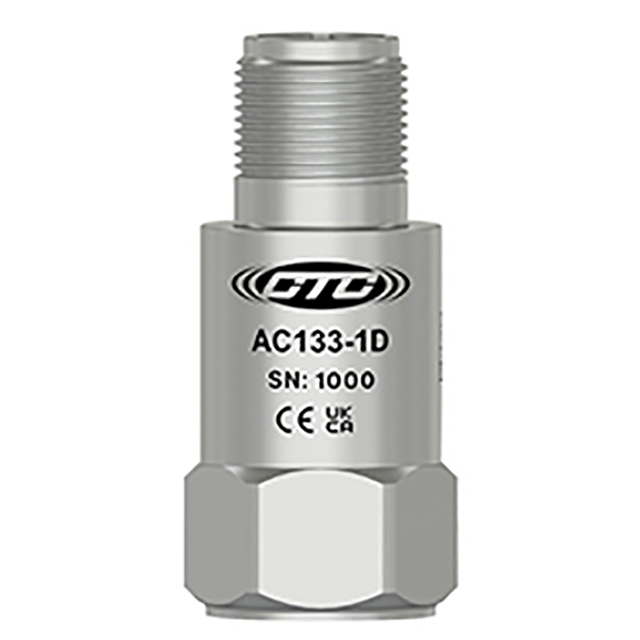

AC133 Datasheet

Low Frequency Accelerometer, Top Exit 2 Pin Connector, 500 mV/g, ±10%

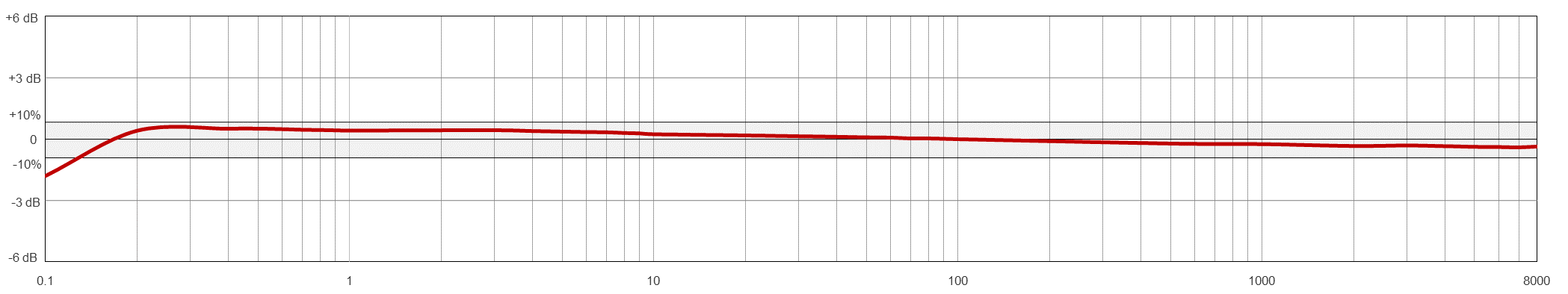

6-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Designed for low speed Rotors, Main Bearings, and Gear Box Inputs, but can also be used for High Frequency Detection.

Can be used with any application that requires low and high frequency measurements.

AC134Datasheet

Low Frequency Accelerometer, Side Exit 2 Pin Connector, 500 mV/g, ±10%

6-480,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Designed for low speed Rotors, Main Bearings, and Gear Box Inputs, but can also be used for High Frequency Detection.

Can be used with any application that requires low and high frequency measurements.

AC153Datasheet

Low Cost, Low Frequency Accelerometer, Top Exit 2 Pin Connector, 500 mV/g, ±15%

6-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Designed for low speed Rotors, Main Bearings, and Gear Box Inputs, but may also be used for High Frequency Detection

Low Cost Accelerometer

AC156Datasheet

Low Cost, Low Frequency Accelerometer, Side Exit 2 Pin Connector, 500 mV/g, ±15%

6-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Designed for low speed Rotors, Main Bearings, and Gear Box Inputs, but may also be used for High Frequency Detection

Low Cost Accelerometer

AC233Datasheet

Premium, Low Frequency Accelerometer, Top Exit 2 Pin Connector, 500 mV/g, ±5%

6-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Designed for low speed Rotors, Main Bearings, and Gear Box Inputs, but can also be used for High Frequency Detection.

Can be used with any application that requires low and high frequency measurements.

AC234Datasheet

Premium, Low Frequency Accelerometer, Side Exit 2 Pin Connector, 500 mV/g, ±5%

6-480,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Designed for low speed Rotors, Main Bearings, and Gear Box Inputs, but can also be used for High Frequency Detection.
