100 MV/G MINI SIZE ACCELEROMETERS

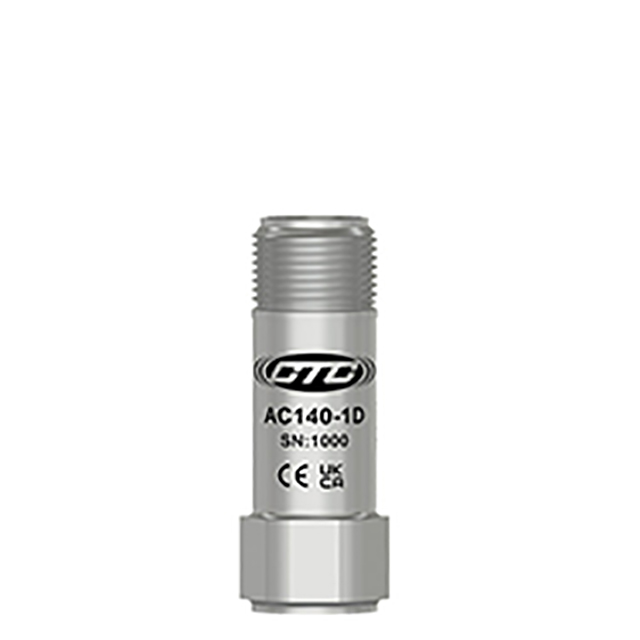

AC140 Datasheet

Low Cost Miniature Industrial Multipurpose Accelerometer, Top Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±15%

36-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Mini Industrial Accelerometer, Great for Hard-to-Reach Locations

AC240Datasheet

Premium Miniature Industrial Accelerometer, High Frequency, Top Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±5%

36-1,500,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Resonant Frequency with Excellent Frequency Response

AC144 Datasheet

Low Cost Miniature Industrial Multipurpose Accelerometer, Side Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±15%

36-600,000 CPM Frequency Response (±3dB)

-58 to 250°F (-50 to 121°C) Temperature Range

Welded, Hermetic Sealing

Low-Cost mini-MIL Industrial Accelerometer, Great for Hard-to-Reach Locations

AC244Datasheet

Premium Miniature Industrial Accelerometer, High Frequency, Side Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±5%

36-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Premium mini mil, Low Profile Industrial Accelerometer

100 mV/g ± 5% Sensitivity

AC146Datasheet

Miniature Industrial, Magnet Mount, Multipurpose Accelerometer, Side Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±10%

36-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Standard, Route-Based Sensor

Excellent Sensor for Trending

AC246Datasheet

Premium, Miniature Industrial, Magnet Mount Accelerometer, Side Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±5%

36-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Premium, Route-Based Sensor

High Performance at a Reasonable Price

UEB332Datasheet

Dynamic Vibration IEPE Ultrasound Sensor, 1/4-28 Mounting, Top Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±10%

30-1,380,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Frequency Ultrasound Accelerometer

UEA332Datasheet

Dynamic Vibration IEPE Ultrasound Sensor, 1/4-28 Mounting, Side Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±10%

60-1,020,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Frequency Ultrasound Accelerometer

High Amplitude Resonance Peak for Stress Wave Measurement Techniques

UEB334Datasheet

Low Cost, Dynamic Vibration IEPE Ultrasound Sensor, 1/4-28 Mounting, Top Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±15%

30-1,380,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Frequency Ultrasound Accelerometer

UEA334Datasheet

Low Cost, Dynamic Vibration IEPE Ultrasound Sensor, 1/4-28 Mounting, Side Exit 2 Pin Mini-MIL Connector, 100 mV/g, ±15%

60-1,020,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Frequency Ultrasound Accelerometer

High Amplitude Resonance Peak for Stress Wave Measurement Techniques
