100 MV/G COMPACT SIZE ACCELEROMETERS

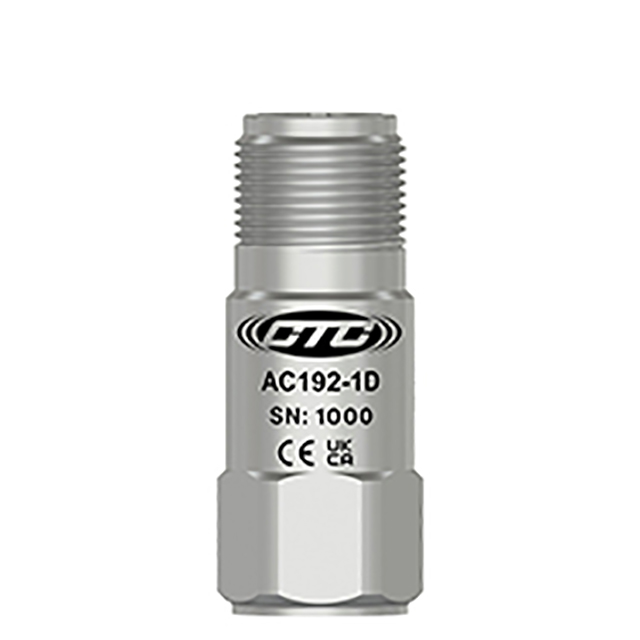

AC192 Datasheet

Compact Multipurpose Accelerometer, Top Exit 2 Pin Connector, 100 mV/g, ±10%

24-780,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Performance in an Affordable Compact Sensor

Very Low Noise and Superior RF Immunity

AC192-M12ADatasheet

Compact Multipurpose Accelerometer, Top Exit 4 Pin M12 Connector, 100 mV/g, ±10%

24-780,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Performance in an Affordable Compact Sensor

Very Low Noise and Superior RF Immunity

AC194 Datasheet

Compact Multipurpose Accelerometer, Side Exit 2 Pin Connector, 100 mV/g, ±10%

30-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Performance in an Affordable, Side Exit, Compact Sensor

Very Low Noise and Superior RF Immunity

AC194-M12ADatasheet

Compact Multipurpose Accelerometer, 4 Pin M12 Connector, 100 mV/g, ±10%

30-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Performance in an Affordable, Side Exit, Compact Sensor

Very Low Noise and Superior RF Immunity

AC198Datasheet

Compact Multipurpose Accelerometer, Side Exit 2 Pin Connector, M8x1.25 Captive Bolt, 100 mV/g, ±10%

30-480,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Performance in an Affordable, Side Exit, Compact Sensor

Very Low Noise and Superior RF Immunity

AC292Datasheet

Premium Compact Accelerometer, Top Exit 2 Pin Connector, 100 mV/g, ±5%

18-900,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Superior RF Immunity in a Compact 100 mV/g Sensor

AC292-M12ADatasheet

Premium Compact Accelerometer, 4 Pin M12 Connector, 100 mV/g, ±5%

18-900,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Superior RF Immunity in a Compact 100 mV/g Sensor

Improved Linearity

AC294Datasheet

Premium Compact Accelerometer, Side Exit 2 Pin Connector, 100 mV/g, ±5%

18-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Superior RF Immunity in a Compact 100 mV/g Sensor

AC294-M12ADatasheet

Premium Compact Accelerometer, 4 Pin M12 Connector, 100 mV/g, ±5%

18-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Superior RF Immunity in a Compact 100 mV/g Sensor
