LOW FREQUENCY, 100 MV/G ACCELEROMETERS

Updated:2023-06-08

Brand: CTC
Model: AC203,AC204
Product description: Low & High Frequency Accelerometer, Top Exit Connector, 100 mV/g
Data download

Feedback
WeChat

QQ

Online Service

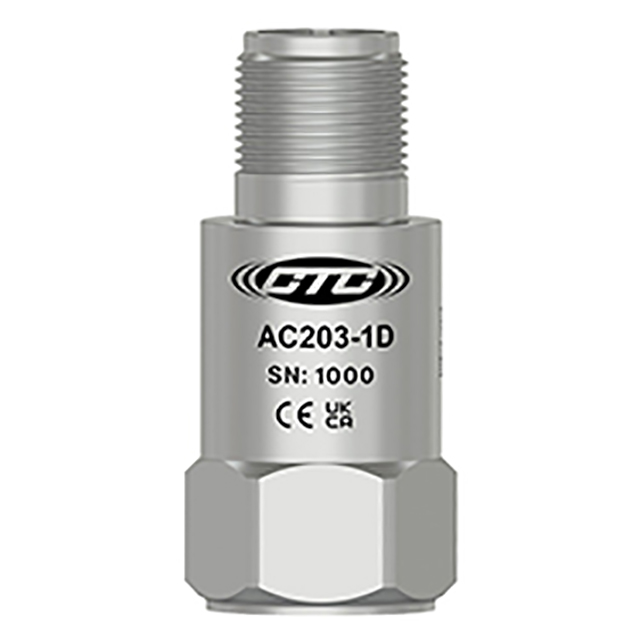

AC203 Datasheet

Low & High Frequency Accelerometer, Top Exit Connector, 100 mV/g

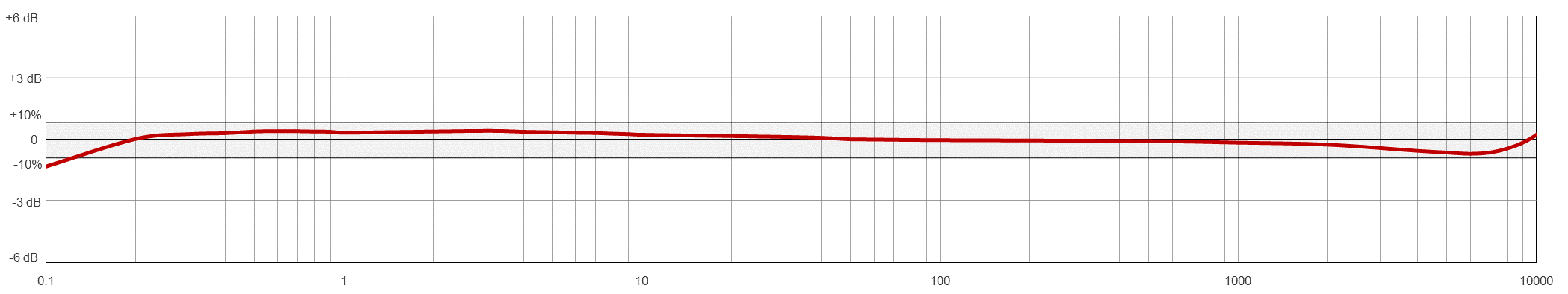

6-600,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Designed for Low Speed Rotors, Wind Turbine Main Bearings, Gear Box Inputs, and May Also Be Used for High Frequency Detection.

May be used with any application that requires low and high frequency measurements.

Low Frequency Accelerometer, Side Exit 2 Pin Connector, 100 mV/g, ±10%

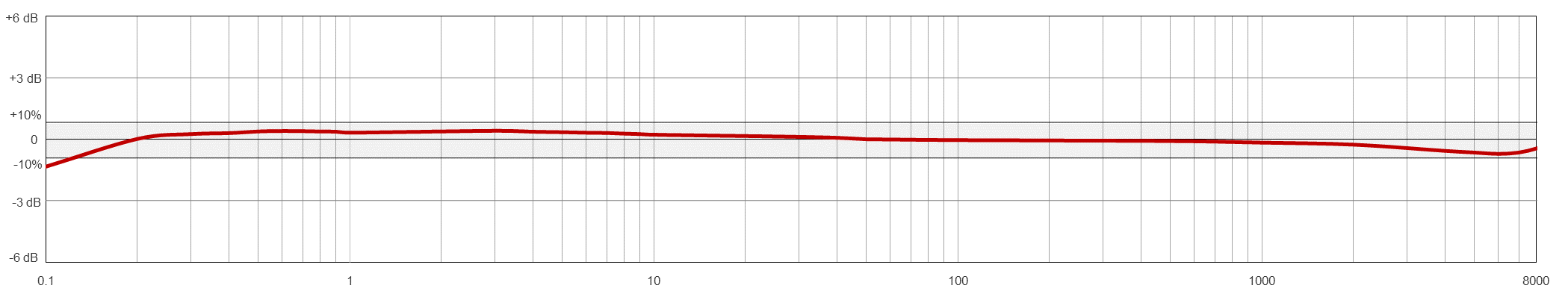

6-480,000 CPM Frequency Response (±3dB)

-58 to 250 °F (-50 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Designed for Low Speed Rotors, Wind Turbine Main Bearings, Gear Box Inputs, and May Also Be Used for High Frequency Detection.

May be used with any application that requires low and high frequency measurements.
