HIGH TEMPERATURE IEPE ACCELEROMETERS 325 °F (162 °C)

Updated:2023-06-12

Views:1243

  • Brand: CTC
  • Model: AC207,AC208,AC288, AC307,AC308
  • Description: If you're looking to monitor extremely high-temperature industrial machinery, you've come to the right place. CTC's family of high-temperature resistant, IEPE accelerometers are proven vibration senso
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

HIGH TEMPERATURE IEPE ACCELEROMETERS 325 °F (162 °C) Description:

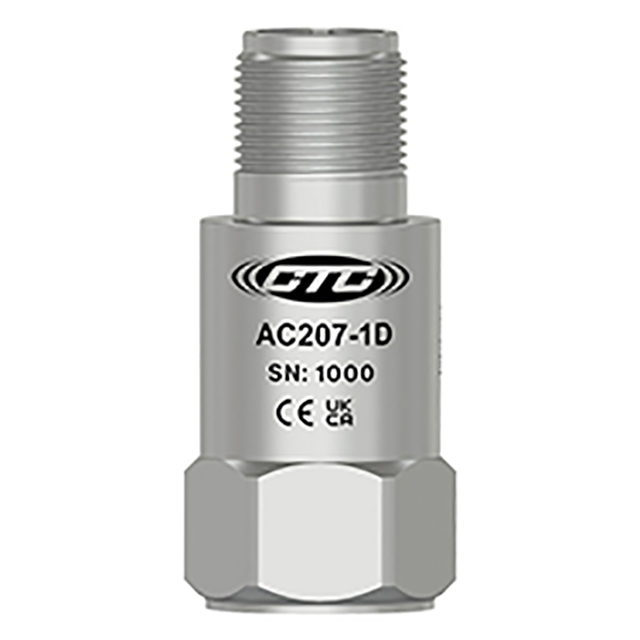

AC207Datasheet

High Temperature IEPE Accelerometer, 325 °F (162 °C) Max Temp, Top Exit 2 Pin Connector, 100 mV/g, ±10%

30-750,000 CPM Frequency Response (±3dB)

-58 to 325 °F (-50 to 162 °C) Temperature Range

Welded, Hermetic Sealing

High Temperature (325 °F) Sensor

Proven Sensor for Standard High Temperature Applications

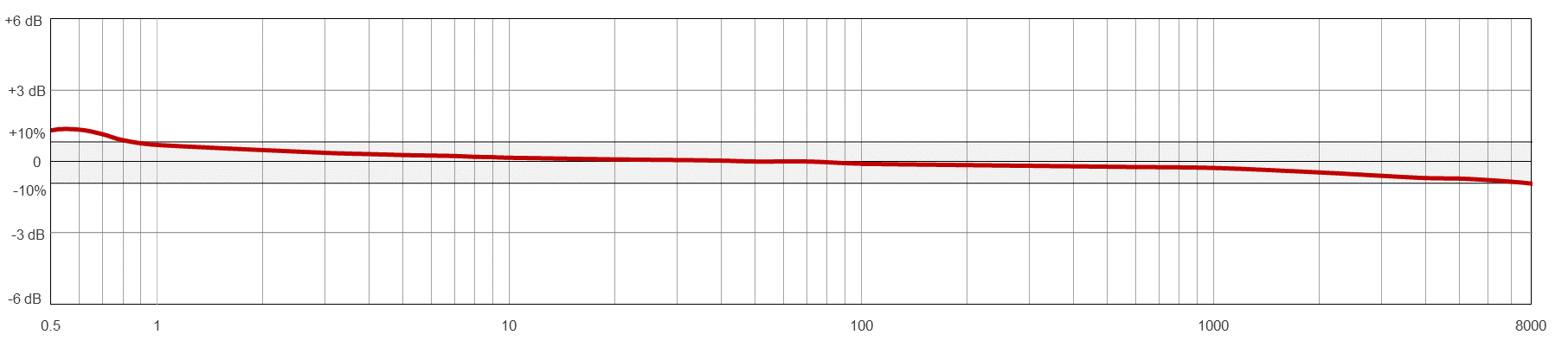

AC207 TYPICAL FREQUENCY RESPONSE

AC208Datasheet

High Temperature IEPE Accelerometer, 325 °F (162 °C) Max Temp, Side Exit 2 Pin Connector, 100 mV/g, ±10%

30-660,000 CPM Frequency Response (±3dB)

-58 to 325 °F (-50 to 162 °C) Temperature Range

Welded, Hermetic Sealing

High Temperature (325°F) Side Exit Sensor

Proven Sensor for Standard High Temperature Applications

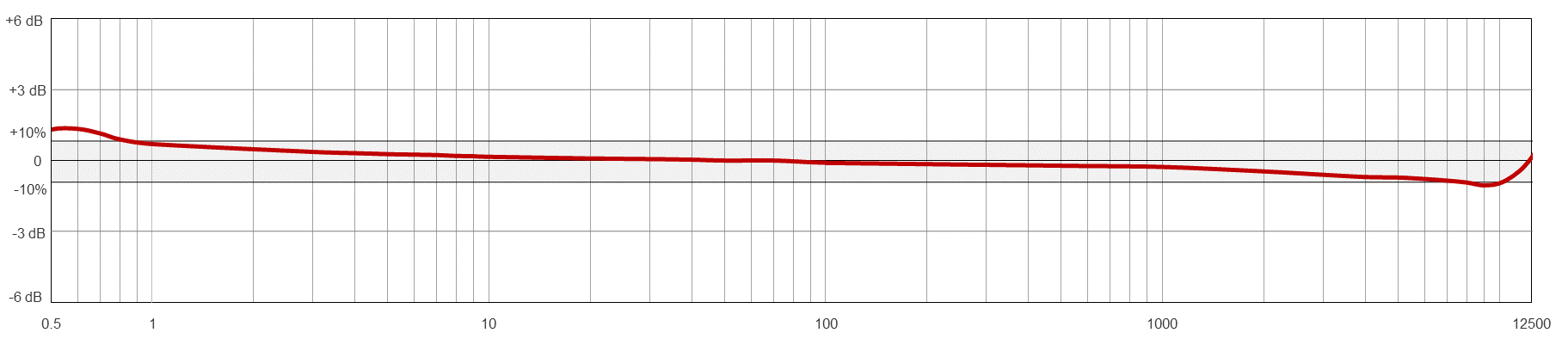

AC208 TYPICAL FREQUENCY RESPONSE

AC288Datasheet

High Temperature IEPE Accelerometer, 325 °F (162 °C) Max Temp, M8x1.25 Captive Bolt, Side Exit 2 Pin Connector, 100 mV/g, ±10%

30-480,000 CPM Frequency Response (±3dB)

-58 to 325 °F (-50 to 162 °C) Temperature Range

Welded, Hermetic Sealing

High Temperature (325°F) Side Exit Sensor

AC288 TYPICAL FREQUENCY RESPONSE

AC307Datasheet

Premium High Temperature IEPE Accelerometer, 325 °F (162 °C) Max Temp, Top Exit 2 Pin Connector, 100 mV/g, ±5%

30-750,000 CPM Frequency Response (±3dB)

-58 to 325 °F (-50 to 162 °C) Temperature Range

Welded, Hermetic Sealing

High Temperature Resistance (325 °F) Sensor

Proven Sensor for Standard High Temperature Applications

AC307 TYPICAL FREQUENCY RESPONSE

AC308Datasheet

Premium High Temperature IEPE Accelerometer, 325 °F (162 °C) Max Temp, Side Exit 2 Pin Connector, 100 mV/g, ±5%

30-660,000 CPM Frequency Response (±3dB)

-58 to 325 °F (-50 to 162 °C) Temperature Range

Welded, Hermetic Sealing

High Temperature Resistance (325 °F) Side Exit Sensor

Proven Side Exit Sensor for Standard High Temperature Applications

AC308 TYPICAL FREQUENCY RESPONSE
