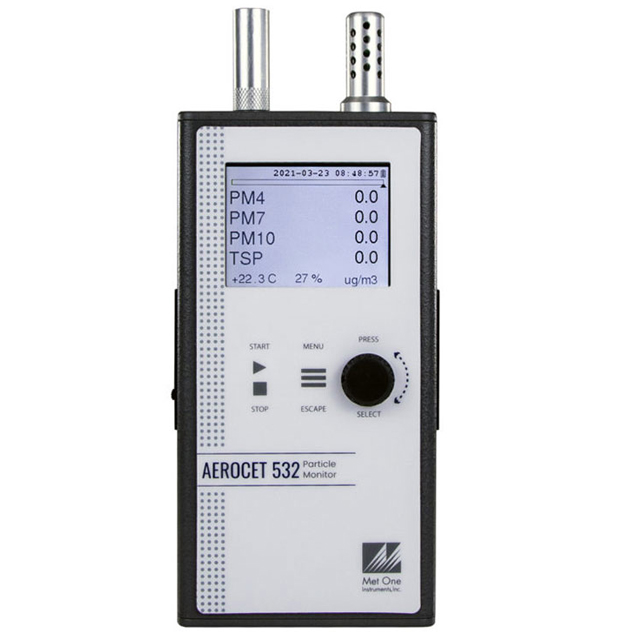

AEROCET 532 HANDHELD PARTICLE MONITOR

AEROCET 532 HANDHELD PARTICLE MONITOR Introduction：

data sheet user's manual

MEET THE NEWEST ADDITION TO THE MET ONE INSTRUMENTS, INC. LINEUP OF HANDHELD PARTICLE MONITORS: THE AEROCET 532.

This particle monitor has been optimized in functionality and ease of use with a 2.8″ TFT full-color LCD display, making accurate measurement readings and operation more effortless than ever. Measuring both particle mass and particle count, this full-featured particle monitor is the perfect addition to any indoor air quality expert’s tool kit.

The Aerocet 532 simultaneously measures and records PM1, PM2.5, PM4, PM7, PM10, and total suspended particulate (TSP). Measurements are rapidly computed and totaled in as little as 60 seconds, recorded using an advanced profile algorithm. In addition to making mass measurements, the Aerocet 532 contains an 8-channel particle counter with a calibrated range of 0.3 to 10 microns.

An upgraded full-color LCD display makes measurement and selection effortless, supported by simple navigation. New features include an instrument wellness check, modifiable operating conditions, an internal toolbox, and last calibration date. The user may customize up to ten specific locations with alpha-numeric identification.

This rugged handheld device is constructed of an all-metal package coupled with an advanced user interface making it a first choice for professionals. The Aerocet 532 is designed for portable operation in difficult environments, with an internal battery life of 8 hours of continuous sampling.

Internal data storage allows for 15,000+ records of either mass measurements or particle counts, and complementary COMET software enables the user to easily download and analyze readings. Data outputs in a .CSV format.

Aerocet 532 handheld particle monitor features:

The particle counts from this device are converted to mass using a proprietary algorithm for typical-density aerosols. Accommodation for special particulate with different densities is provided through user-programmable K factors.

The Aerocet 532 stores over 6,000 data records which can be viewed on the large, color display, or transferred to a computer via USB. Met One’s COMET software makes file transfers easy with the capability to import sample data into an excel spreadsheet. Utilize the ALL-NEW optional docking station with WiFi, ethernet, and RS-485 connectivity for even easier data transfer.

Equipped with an integrated relative humidity and temperature sensor, data reports automatically include these parameters.

Tactile navigation has been streamlined with a ‘Start/Stop’ button, a ‘Menu/Escape’ button, and a ‘Press/Select’ rotary knob for scrolling that doubles as a selection switch when pressed. The result is a faster, more intuitive interface.

FEATURES:

1. LARGE FULL-COLOR LCD DISPLAY
2. MENU-DRIVEN MULTIFUNCTION ROTARY SCROLL WHEEL
3. 10 USER-IDENTIFIABLE ALPHANUMERIC LOCATION ID’s
4. INTEGRATED RH & TEMP SENSOR

ACCESSORIES SUPPLIED:

1. User Manual
2. Isokinetic Sample Inlet

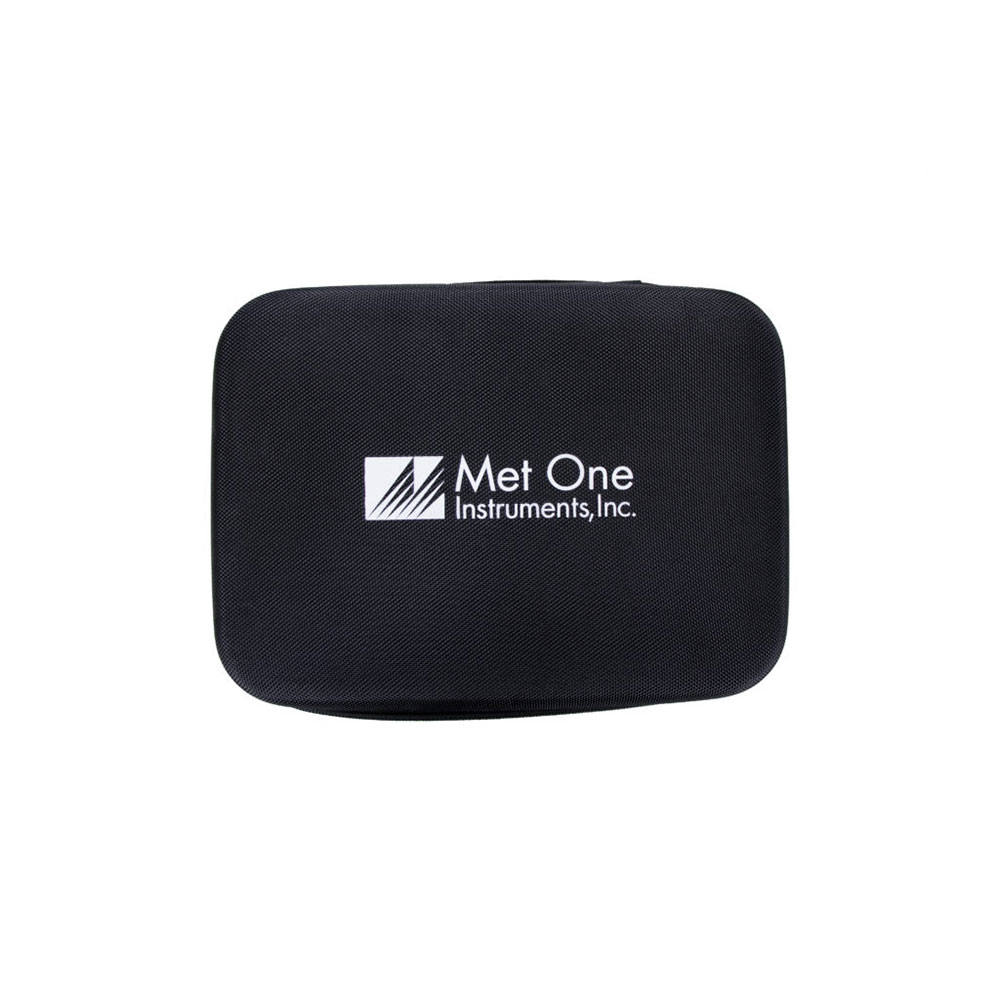

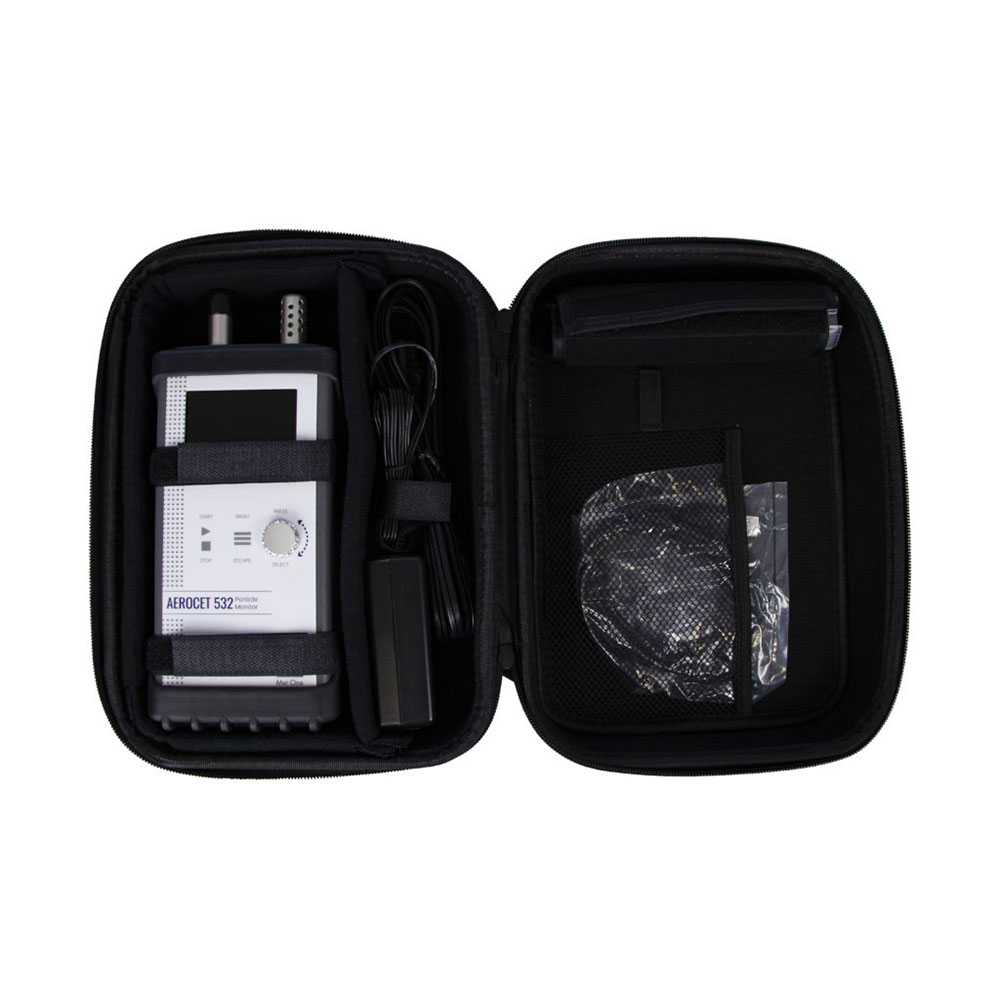

3. EVA Carrying Case
4. USB Cable
5. Zero Particulate Filter
6. Calibration Certificate
7. RH & Temperature Probe
8. Rubber Boot
9. AC Adapter/ Battery Charger
10. Comet Software

OPTIONAL:

1. Swift 6.0 Flow Meter
2. The Dock, Docking Station with WiFi, ethernet, & RS-485 connectivity (p/n 83529)

APPLICATIONS:

1. Industrial/Occupational Hygiene
2. HVAC
3. Indoor Air Quality Monitoring
4. Industrial Hygiene
5. QA Programs
6. Public & Workplace Monitoring
7. Schools
