AutoMet 580 & 136 MultiMet Interface Module Introduction：

data sheet user's manual

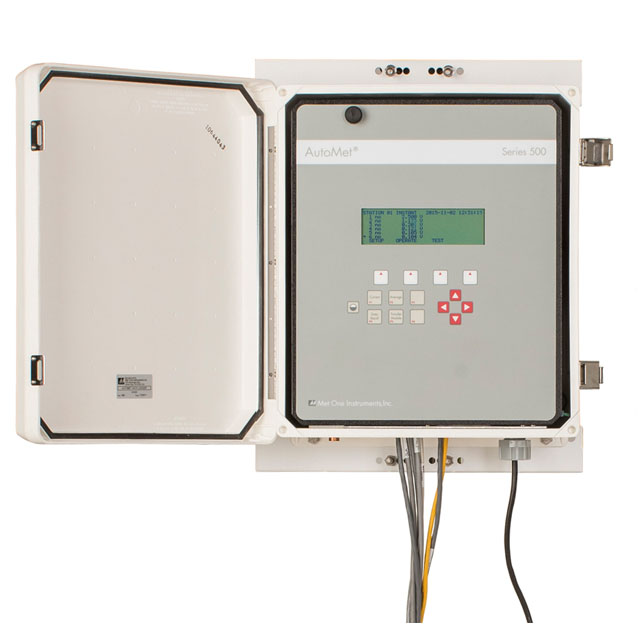

Our AutoMet 580 Collection Platform is a complete data logger with front panel display which accepts input from any Met One standard sensors, AutoMet sensors and Met One digital serial sensors. Featuring Ethernet and MODBUS connectivity, the AutoMet output is compatible with our COMET, Air Plus and WeatherView Software.

As always, Met One Instruments, Inc. provides your AutoMet based weather stations pre-wired, preprogrammed and pre-tested at no extra charge to get your site up and running faster.

Met One Instruments Model 136 MultiMet Interface Module is designed to be easily and quickly connected to any of our meteorological sensors1 and selected particulate AIR sensors. Replacing our 131 Series MultiMet Translators and our legacy Universal Interface module (UIM), the 136 outputs data in both analog and digital formats.

The 136 features 12 independent, 16-Bit, voltage output channels. This allows the 136 to function as a powerful, user-configurable signal translator for direct connection to a variety of other recording systems, data loggers, PLC’s and DCS’s. Serial output formats include USB, RS-232 or RS-485 serial (ASCII), MODBUS RTU and UIM serial report string (ASCII). Analog outputs include 0-1, 0-2.5, 0-5 VDC, and 4-20 mA isolated current loop with our optional DIN rail mount, single channel transmitters, P/N 510695.

User configurable statistical calculations are available for: Averages; Min, Max and Delta Temperature; Standard Deviation; Gusts and Dew Point. There are also two alarm outputs that can be used as either single alarm or combined in a AND or OR logic output.

Communication options, purchased separately, include: network interface, cellular data modem, and radio. Cloud data service is also available.

Real Time Data can be displayed by running our WeatherView Software on a PC or Laptop. WeatherView and also provide a Web Page compatible display for viewing current weather data values.

FEATURES

1. Powerful connectivity: Ethernet, MODBUS, 12 analog outputs, USB, RS-232C, RS-485
2. Statistical calculations: Avg, min, max, delta, STD DEV, dewpoint & more
3. Matched pyranometer inputs: For global horizontal & plane of array measurements
4. PT-100 platinum temperature inputs: For ultra-accurate and wide range temperature measurements.

1. Powerful connectivity: Ethernet, MODBUS, 12 analog outputs, USB, RS-232C, RS-485
2. Statistical calculations: Avg, min, max, delta, STD DEV, dewpoint & more
3. Matched pyranometer inputs: For global horizontal & plane of array measurements
4. PT-100 platinum temperature inputs: For ultra-accurate and wide range temperature measurements.

APPLICATIONS:

1. Ambient Monitoring
2. Mining & Ore Processing
