BD5000W-BB-50 P/N7Z17201 Beam Dump

Updated:2023-05-25

Brand: Ophir
Model: BD5000W-BB-50
Description: The BD5000W-BB-50 is a water cooled beam dump with a 50mm aperture for up to 5000W. It can withstand 3kW/cm² at full power and has a spectral range from 0.19 - 20µm.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

BD5000W-BB-50 P/N7Z17201 Beam Dump Introduction：

The BD5000W-BB-50 is a water cooled beam dump with a 50mm aperture for up to 5000W. It can withstand 3kW/cm² at full power and has a spectral range from 0.19 - 20µm.

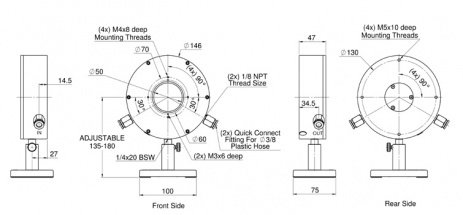

BD5000W-BB-50 P/N7Z17201 Beam Dump Drawing：

BD5000W-BB-50 Drawing

BD5000W-BB-50 P/N7Z17201 Beam Dump Specification：

Aperture	Ø50mm
Spectral Range	0.19 - 20µm
Power Range	Up to 5000W
Dimensions	Ø146 W x 47 D (mm)
Max Average Power Density	3kW/cm²
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Backscatter	N.A.
