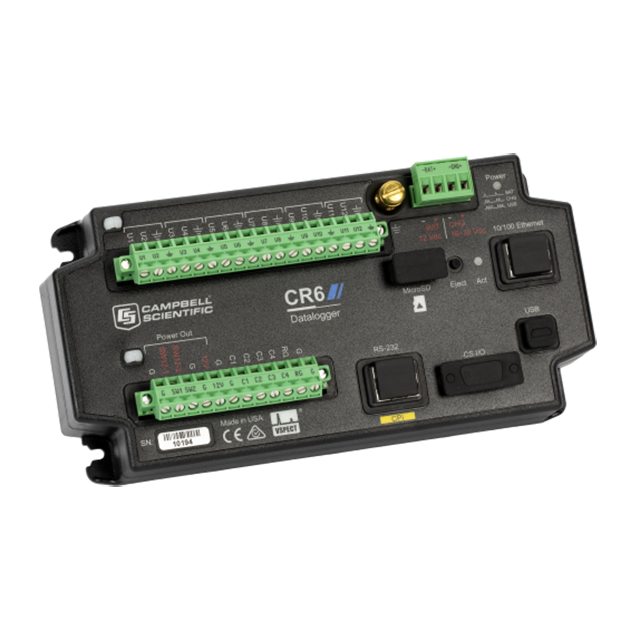

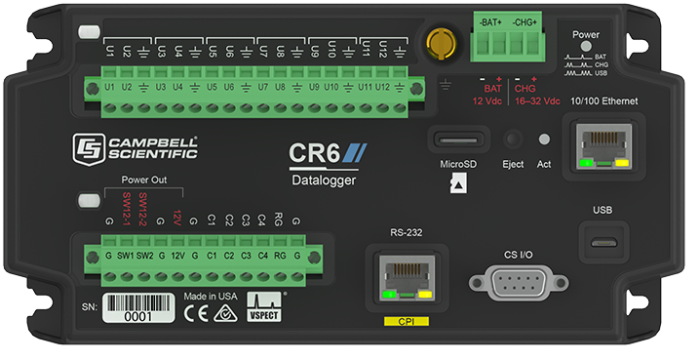

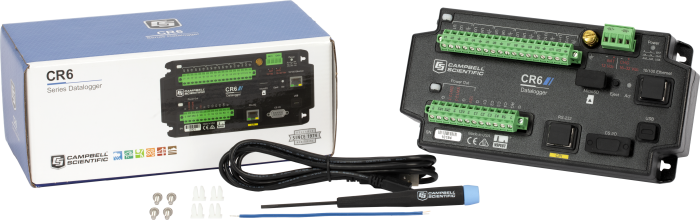

CR6 Measurement and Control Datalogger

CR6 Measurement and Control Datalogger Description：

User's Manual Getting Started Guide

The CR6 Measurement and Control Datalogger is a powerful core component for your data-acquisition system. The CR6 datalogger provides fast communication, low power requirements, built-in USB, compact size, and high analog input accuracy and resolution. It uses universal (U) terminals to allow a connection to virtually any sensor—analog, digital, or smart. This multipurpose data logger is also capable of doing static vibrating wire measurements.

The CR6 measures almost any sensor with an electrical response, drives direct communications and telecommunications, reduces data to statistical values, performs calculations, and controls external devices. After measurements are made, data are stored in onboard, nonvolatile memory awaiting transfer to the computer. Because most applications do not require that every measurement be recorded, the program usually combines several measurements into computational or statistical summaries, such as averages and standard deviations.

Communication Options

The CR6-WIFI Option

The CR6-WIFI is the ideal solution for short-range wireless IP communications.

Using a Wi-Fi enabled device and our free LoggerLink Mobile App, you can wirelessly connect to the CR6-WIFI. The CR6-WIFI comes factory-configured as a Wi-Fi access point. Alternatively, the CR6-WIFI can be configured to join an existing Wi-Fi network with standard or Enterprise (EAP) security.

The CR6-RF407 Option

The CR6-RF407 is ideal for medium-range, license-free radio communications.

This 900 MHz, 250 mW frequency-hopping spread-spectrum radio option can join a high-speed "mesh topology" radio network of other data loggers using the included RF407 radio.

The CR6-RF412 Option

The CR6-RF412 is ideal for medium-range, license-free radio communications.

Designed primarily for unlicensed operation in Australia and New Zealand, this 922 GHz, 250 mW frequency-hopping spread-spectrum radio can join a high-speed "mesh topology" radio network of other data loggers using the included RF412 radio.

The CR6-RF422 Option

The CR6-RF422 is ideal for short- to medium-range, license-free radio communications.

Used in the EU, this 868 MHz, 25 mW radio option includes listen-before-talk (LBT) and adaptive-frequency-agility (AFA). It can join a high-speed "mesh topology" radio network of other data loggers using the included RF422 radio.

The CR6-RF452 Option

The CR6-RF452 is typically used for long-range, license-free radio communications.

With this internal 900 MHz, 1 W, frequency-hopping spread-spectrum radio option, the CR6-RF452 can be part of a "star topology" network where all RF traffic routes back through the master. It can work in a network with other devices using RF450 or RF451 radios. CR6-RF452s may be configured as master, repeater, or remote devices and can be located miles apart in harsh RF environments.

CR6 Measurement and Control Advantages and Characteristics：

Operational in extreme environments with a standard operating range of -40° to +70°C and an extended operating range of -55° to +85°C

Connects directly to a computer's USB port

U terminals configurable to what you want them to be: analog or digital, input or output

Supports static vibrating wire measurements using our patented VSPECT® spectral-analysis technology

Differentiates even slight changes in data values with high-resolution measurements (to 0.05 µV, 24 bit Adc)

Contains an onboard CPI port for hosting Campbell sensors and distributed modules (CDMs)

Directly connects to Ethernet with 10/100 Ethernet RJ-45 or Ethernet over USB (virtual Ethernet)

Includes a microSD card drive for extended memory requirements

Provides simple serial sensor integration and measurement with SDI-12, RS-232, and/or RS-485

Supports full PakBus® networking

Includes an embedded web page for direct connection via web browser

CR6 Measurement and Control Datalogger Specification：
