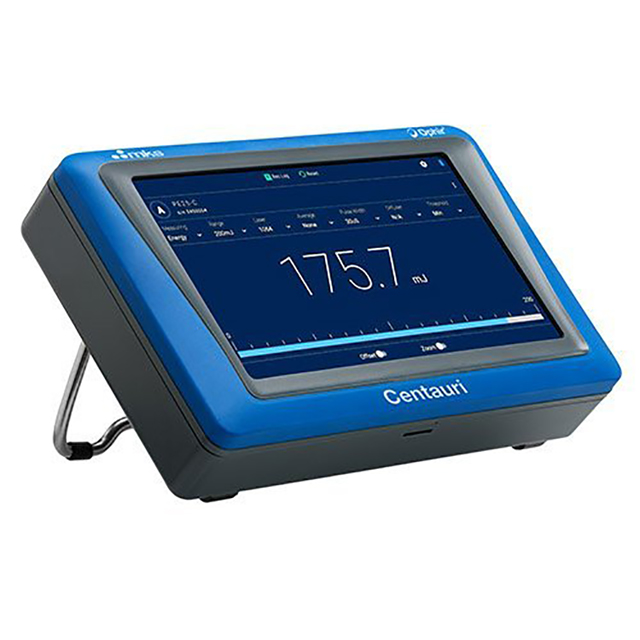

Centauri Dual Channel P/N7Z01701 Laser Power/Energy Meter

Centauri Dual Channel P/N7Z01701 Laser Power/Energy Meter Description:

Compatible with all standard Ophir Thermal, BeamTrack, Pyroelectric and Photodiode sensors for laser measuring

Large 7" Full Color Touch Display

Multilingual interface – English, French, Spanish, Italian, German, Russian, Japanese, Chinese and Korean

Single and Dual Channel models available

Various Displays: Bargraph, Analog Needle, Line Plot, Pulse Chart, Pass/Fail, Position, Stability, and Real Time Statistics

Dual Channel Instrument supports Split and Merged Graphical Displays

Sophisticated power and energy logging, including logging every pulse at up to 25000Hz with Pyro sensors

Math functions: Density, Scale Factor, Normalize against base line, etc. Functions can be mixed together, displayed graphically, and can also be logged

Math Channel allows comparison of two measurements

Field upgrading of embedded software via USB Flash Drive

2GB internal storage and USB Flash Drive for ample data storage (a)

USB and RS232 interfaces with StarLab PC applications and User Commands document

LabVIEW driver and COM Object Interface

Pulsed Power measurements with Thermopile sensors

Low Frequency Power with Photodiode sensors - power measurement based on pulse cycle (for VCSEL)

Fast Power (10kHz) logging with Photodiode sensors

Exposure measurement (Energy Summing) with Photodiode and Pyroelectric sensors

Scalable Analog Output, TTL Output and External Trigger Input

Loudspeaker for Audio Warnings

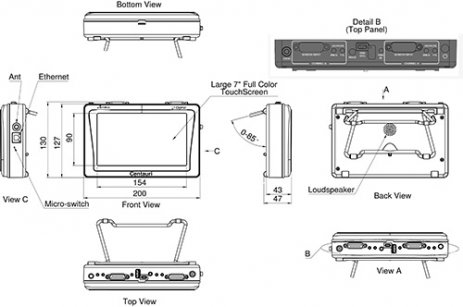

Centauri Dual Channel P/N7Z01701 Laser Power/Energy Meter Drawing：

Centauri Drawing

Centauri Dual Channel P/N7Z01701 Laser Power/Energy Meter Specification：
