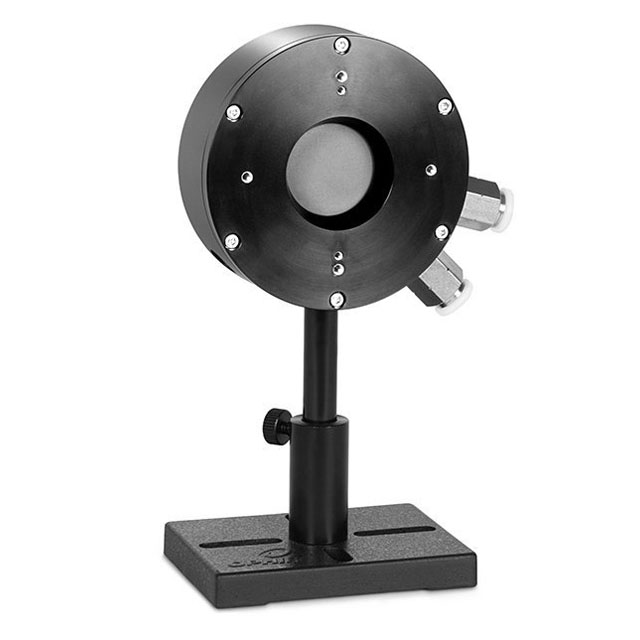

1000W-BB-34 P/N 7Z02750 Laser measuring sensor

Updated:2023-05-25

Brand: Ophir
Model: 1000W-BB-34
Description: The 1000W-BB-34 is a water cooled thermal power/energy laser measurement sensor with a 34mm aperture. It can measure power from 5W to 1000W and energy from 300mJ to 300J. It has the spectrally flat br
Data download

Feedback
WeChat

QQ

Online Service

Product Details

1000W-BB-34P/N7Z02750 Overview of the laser measurement sensor：

The 1000W-BB-34 is a water cooled thermal power/energy laser measurement sensor with a 34mm aperture. It can measure power from 5W to 1000W and energy from 300mJ to 300J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 20µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

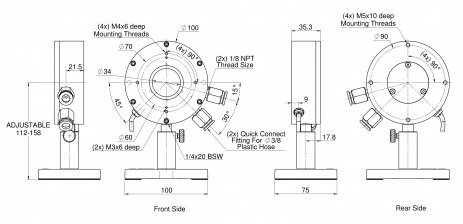

1000W-BB-34P/N7Z02750 Drawing of laser measuring sensor：

1000W-BB-34P/N7Z02750 drawing

1000W-BB-34P/N7Z02750 Laser measuring sensor specification：

Absorber Type	Broadband
Aperture	Ø34mm
Spectral Range	0.19-20µm
Power Range	5W-1000W
Energy Range	400mJ-300J
Backscattered Power	N.A.
Dimensions	Ø100 W x 35 D (mm)
Max Pulse Energy	300J
Max Average Power Density	7kW/cm²
Response Time	2.5 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	10J/cm²
Max Average Power	1000W
BeamTrack Functions	N.A.
Compliance	CE, China RoHS
