Comet 10K 7Z02705 Power Puck Laser Sensor

Updated:2023-05-29

Brand: Ophir
Model: Comet 10K
Product description: The Comet 10K is a portable power puck laser sensor with a 100mm aperture. It can measure power from 200W to 10kW by sampling a 20s exposure of laser power. It has a broadband coating and is calibrate
Data download

Feedback
WeChat

QQ

Online Service

product details

Comet 10K 7Z02705 Power Puck Laser Sensor Description:

The Comet 10K is a portable power puck laser sensor with a 100mm aperture. It can measure power from 200W to 10kW by sampling a 20s exposure of laser power. It has a broadband coating and is calibrated for 0.98 – 1.07µm and 10.6µm.

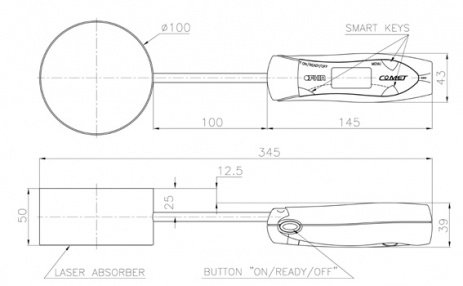

Comet 10K 7Z02705 Power Puck Laser Sensor Drawing：

Comet 10K Drawing

Comet 10K 7Z02705 Power Puck Laser Sensor Specification：

Absorber Type	N.A.
Aperture	Ø100mm
Spectral Range	0.98-1.07µm and 10.6µm
Power Range	200W-10,000W
Energy Range	N.A.
Backscattered Power	N.A.
Dimensions	345 L x 50 W x 100 D (mm)
Max Pulse Energy	N.A.
Max Average Power Density	1kW/cm²
Response Time	N.A.
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	15J/cm²
Max Average Power	10kW
BeamTrack Functions	N.A.
