Wind is a key parameter for the rate of water loss in the soil plant atmosphere continuum. By using the Davis wind speed and direction sensor, this key parameter can be easily obtained without any worries.

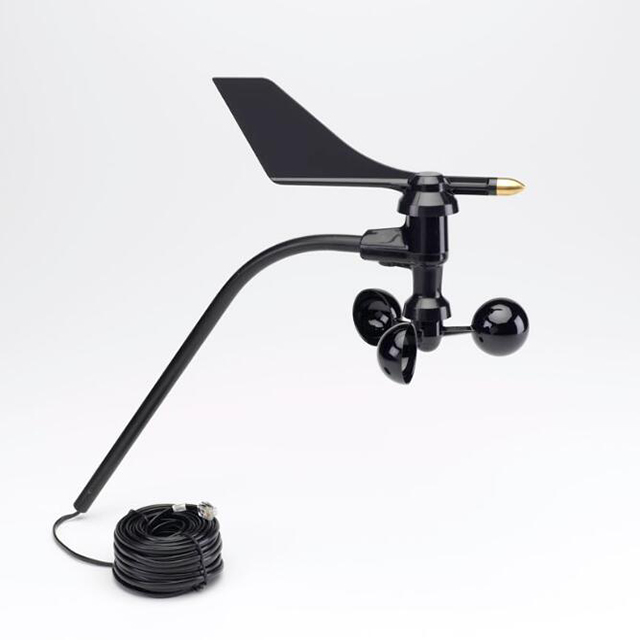

The Davis Wind and Direction Sensor is a simple, traditional wind and direction sensor that measures wind and direction by setting the acquisition interval without complicated setup, maintenance or programming.
Easy to install: It is fixed by two screws, oriented by a compass, and can be inserted to collect data
| Wind speed accuracy | ± 5% |
| Wind direction accuracy | 7° |
| Wind speed resolution | 1 mph (0.45 m/s, 1.6 km/hr) |
| Wind direction resolution | 1° (0 to 355°) |
| Wind speed range | 0 - 129 mph (58 m/s, 209 km/hr) |
| Start-up wind speed | 3 mph (1.3 m/s, 4.8 km/hr) |
| Wind range |
0 ~ 360° Weather vane: anti-UV ABS |
| Material |
Wind cup: polycarbonate Sensor support arm: black anodized aluminum |
| Size | 470 mm × 191 mm × 121 mm（L × H × W） |
| Weight | 1.332 kg |
| Data Acquisition Instrument | EM50,ProCHECK,CR300,SDI-12 Converter |
