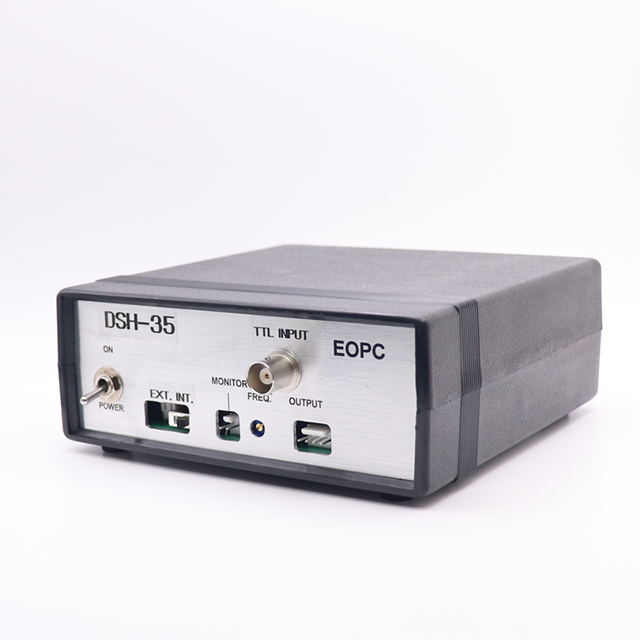

EOPC DSH-35 Driver for SH-35 Optical Shutter

Updated:2024-12-12

Brand: EOPC
Model: DSH-35
Description: The DSH-35 driver is specifically designed to control the SH-35 optical shutter. The driver is callibrated during manufacturing to minimize shutter vibration. The driver is easily operated using the i
Data download

Feedback
WeChat

QQ

Online Service

Product Details

EOPC DSH-35 Driver for SH-35 Optical Shutter Description：

DSH-35-PC Instuctions DSH-35 with BNC Instuctions DSH-35 Instuctions

Flexible Driver for SH-35 Optical Shutter

The DSH-35 driver is specifically designed to control the SH-35 optical shutter. The driver is callibrated during manufacturing to minimize shutter vibration. The driver is easily operated using the internal or external mode switch.

Internal Mode: Adjustable Low-Frequency Optical Chopper

In internal mode, the shutter acts as an adjustable low-frequency (0.5 to 50 Hz) optical chopper. An internal oscillator and multiturn potentiometer control the laser shutter blade position. The internal oscillator has a minimum frequency stability of 0.1%.

External Mode: Versatile Control Options

In the external mode, the shutter is controlled by an external TTL signal at a two-pin input connector or, optionally, a BNC connector. The optical modulator can be opened by disconnecting the pins of the input connector and closed by connecting (shorting) the pins of input connector. Alternatively, a TTL clock signal from DC to 50 Hz can be used to control the laser chopper position. A TTL low signal moves the shutter to a closed position and a TTL high signal moves the shutter to a closed position.

Monitor Output

The diver includes a monitor output connector. A TTL high output indicates that the shutter is open and the TTL low output indicates that the shutter is close. At power up the monitor output is undefined.

Ordering Information

TYPE [DSH-35-110, DSH-35-BNC-110, DSH-35-220, DSH-35-BNC-220, DSH-35-110/220, DSH-35-BNC-110/220, DSH-35-PC], per customer specifications.

Features and Advantages

Ultra low vibration driver

DC to 50 Hz frequency control

Integrated oscillator with trim pot to adjust chopping frequency

External shutter control with TTL signal

Shutter position monitor output

110V or 220V operation

Printed circuit board level option

Drawings

SH-35-PC HOOK UP DIAGRAM

Specifications

Input power	15V DC for the DSH-35-PC, 110V or 220V AC for DSH-35-110 and DSH-35-220
Frequency range	DC to 50 Hz
External input	TTL level (high = open, low = closed)
Frequency stability	0.1% min in internal mode, 0.005% min in external mode
Monitor output	TTL level (high = open, low = closed)
Operating temperature	0 to 65 °C
Dimensions	3.93" x 2.6" for PCB version 5.3" × 5.3" × 2" for cased versions

Product Options

-PC	Board level driver (3.93" x 2.6") that requires an external regulated +15 VDC power supply.
-110	Cased driver (5.3" × 5.3" × 2") operating from a line voltage of 110V AC.
-220	Cased driver (5.3" × 5.3" × 2") operating from a line voltage of 220V AC.
-110/220	Cased driver (5.3" × 5.3" × 2") with a line switch selector for operating from a line voltage of 110V or 220V AC.
-BNC	BNC connector input for cased drivers to control blade position (5V = open, 0V = close).
