EA-1 7Z01240 Ethernet Adapter

Updated:2023-05-26

Views:1195

Product Details

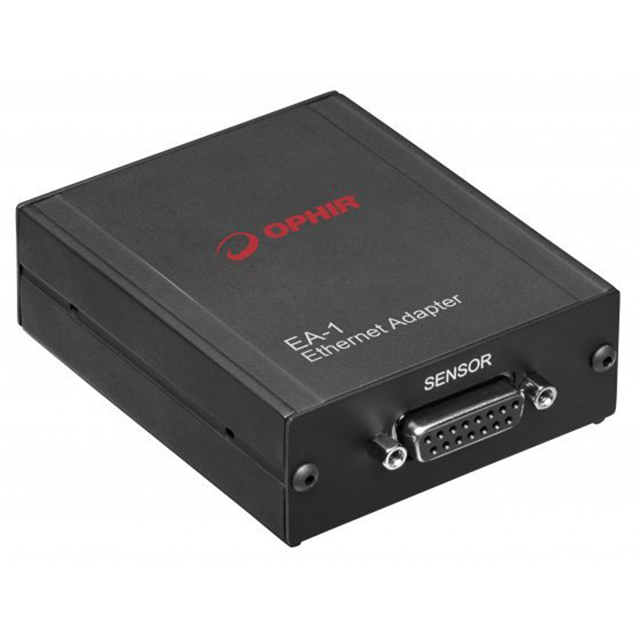

EA-1 7Z01240 Ethernet Adapter Description:

The EA-1 Ethernet Adapter turns your sensor into an Ethernet Laser Power Meter. Features include:

From sensor direct to Ethernet with no PC connection

Power direct from the Ethernet bus

Supports thermopile, photodiode and pyroelectric smart sensors

PC application software package included

Allows remote monitoring via Telnet, HTTP and UDP protocols

Log power and energy, average, statistics, histograms and more with included StarLab application

New: Low Frequency Power on Photodiode sensors - power measurement based on pulse cycle (for VCSEL)

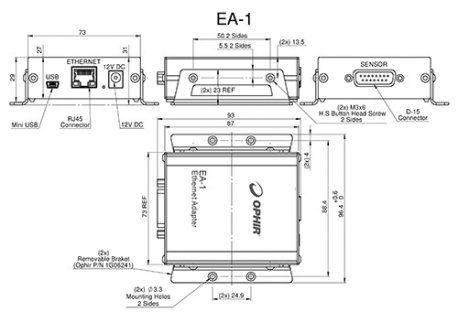

EA-1 7Z01240 Ethernet Adapter Drawing:

EA-1 Drawing

EA-1 7Z01240 Ethernet Adapter Specification:

Thermal Sensors Yes
Photodiode Sensors Yes
Pyroelectric Sensors Yes
BeamTrack Sensors Yes
Statistics Yes
Analog Out No
Communication Ethernet, USB
Trigger Input & Output No
Power Supply Via Ethernet or included Power Supply
Ethernet Yes
RS232 N/A
GPIB N/A
USB Yes
Bluetooth N/A
On-Board Data Storage No
Automation Interface Yes
Labview VI's No
