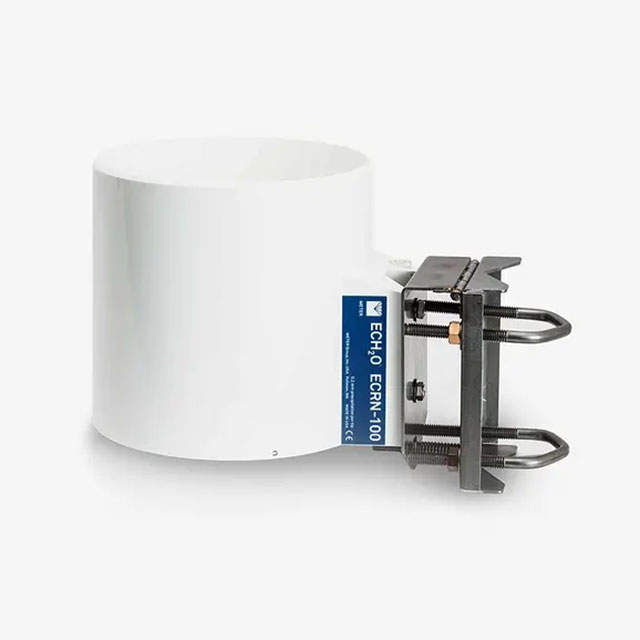

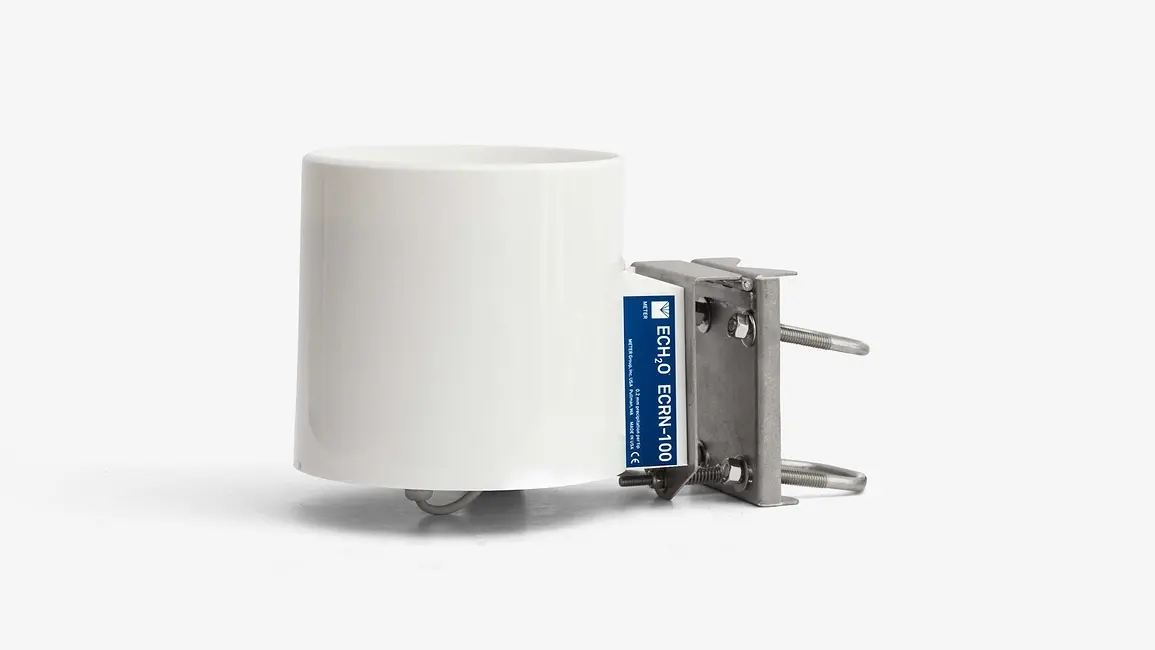

ECRN-100 Rain Gauge (High Resolution)

Updated:2023-03-06

Views:1401

  • Brand: METER
  • Model: ECRN-100
  • Description: Rain gauge for measuring precipitation and for use in scientific research.Two internal tipping spoons make this rain gauge very sensitive, with one tip per 0.2 mm of rain.Made of durable plastic that
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

ECRN-100 Rain Gauge (High Resolution) Description:

User's Manual

Research-grade rain gauge

Rain gauge for measuring precipitation and for use in scientific research. For all-in-one weather monitoring, see ATMOS 41

Dual spoon mechanism for better resolution

Two internal tipping spoons make this rain gauge very sensitive, with one tip per 0.2 mm of rain.

Durable

Made of durable plastic that is UV, water, and frost-resistant.

ECRN-100 Rain Gauge (High Resolution) Specification:

Resolution 1 tip
Funnel collector diameter 16.0 cm
Height 16.0 cm
Volume per tip 4.02 ml/tip
Rainfall per tip 0.2 mm
Sensor type Double-spoon tipping bucke
Case material ABS
Operating environment 0 °C to 60 °C
Cable length 5 m
Cable connector types 3.5 mm "stereo" plug
Rain gauge dimensions 17 cm x 14.2 cm
Data logger compatibility (not exclusive) METER EM50/EM60 series, ZL6 series, ProCheck, ZSC
Warranty One year, parts and labor

ECRN-100 Rain Gauge (High Resolution) FAQ's:

1、How do I check the calibration and then recalibrate the ECRN-50 or ECRN-100 tipping bucket rain gauge?

The tipping bucket rain gauges have small stops that can be adjusted such that the bucket tips after the appropriate volume of water was collected in the bucket. Calibrate ECRN-50 when wet because a little water remains in the cup.

2、What is the maximum flow rate for the ECRN-100?

12 mm/minute

3、What is the volume per tip for the ECRN-100?

ECRN-100 volume per tip: 4.02 ml/tip

Rainfall per tip: 0.2 mm/tip
