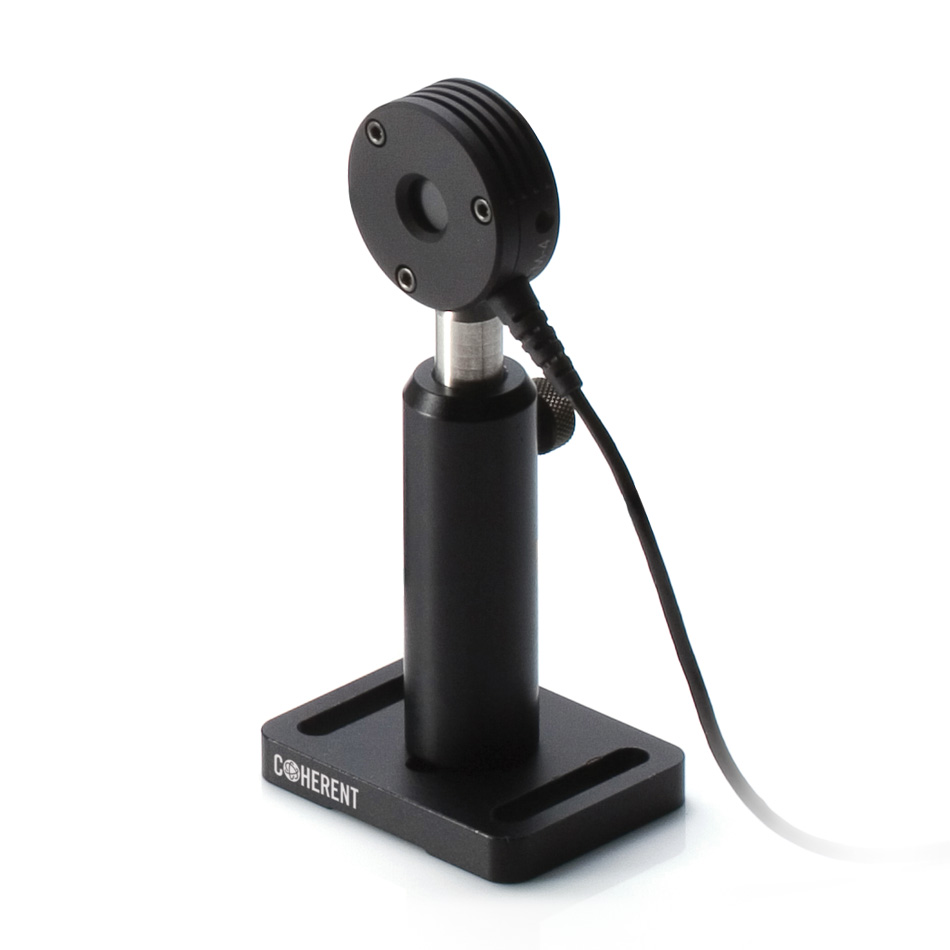

Coherent EnergyMax-RS J-10MB-LE Energy Sensor

Updated:2024-11-18

Brand: Coherent
Model: EnergyMax-RS J-10MB-LE
Description: The EnergyMax-RS J-10MB-LE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557)
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent EnergyMax-RS J-10MB-LE Energy Sensor Description：

Datasheet User's Manual

The EnergyMax-RS J-10MB-LE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1110855) is available.

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 500nJ-600µJ at up to 1000 pps. Direct RS232 interface.

Key Features:

190 nm to 12 µm spectral range

10 mm diameter active area

500nJ-600µJ energy range

1000 pps repetition rate operation

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type

RS232

Active Area Diameter

10 mm

Detector Coating

MaxBlack

Energy Range

500 nJ to 600 µJ

Wavelength Range

190 nm to 12 µm

Noise Equivalent Energy

<50 nJ

Maximum Pyroelectric Rep. Rate (pulses per second)

1000

Wavelength Range (micrometers)

0.19 to 12

Maximum Average Power (watts)

Maximum Pulse Width (microseconds)

Maximum Energy Density (millijoules per square centimeter)

500 (at 1064 nm, 10 ns)

Diffuser

Calibration Uncertainty (%)(k=2)

±2

Energy Linearity (%)

±3

Calibration Wavelength (nanometers)

1064

Cable Length (meters)
