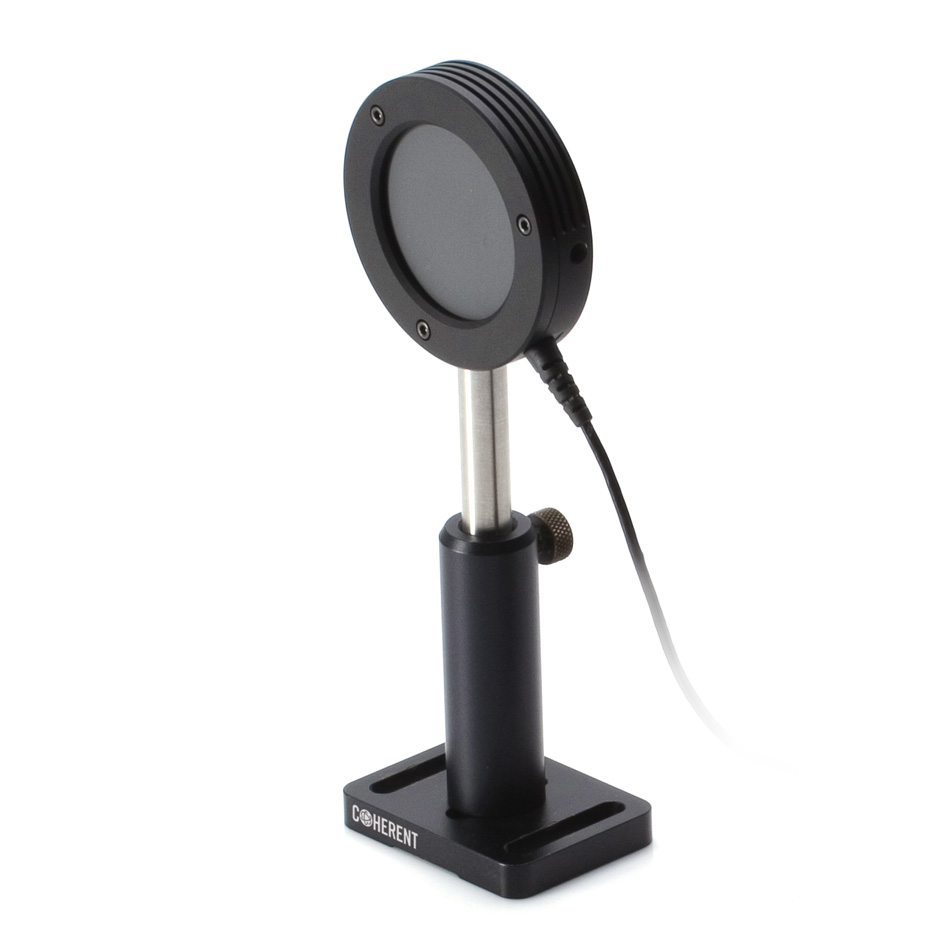

Coherent EnergyMax-RS J-50MB-HE Energy Sensor

Updated:2024-11-18

Brand: Coherent
Model: EnergyMax-RS J-50MB-HE
Description: The EnergyMax-RS J-50MB-HE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557)
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent EnergyMax-RS J-50MB-HE Energy Sensor Description：

Datasheet User's Manual

The EnergyMax-RS J-50MB-HE energy sensor is terminated in an RS232 cable that interfaces directly to a PC or industrial controller. Power must be provided via a 5VDC power supply (optional PN 1105557) or via Pin 1. A DB25 model (PN 1110573) is available.

A large heatsink (PN 1123432) is available to extend the energy and repetition rates of EnergyMax sensors by increasing the average power capability.

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 1.6 mJ to 2J at up to 300 pps. Direct RS232 interface.

Key Features:

190 nm to 12 µm spectral range

50mm diameter active area

1.6 mJ to 2J energy range

300 pps repetition rate operation

Direct RS232 interface

ISO 17025 accredited

Specifications

Cable Type

RS232

Active Area Diameter

50 mm

Detector Coating

MaxBlack

Energy Range

1.6 mJ to 2J

Wavelength Range

190 nm to 12 µm

Noise Equivalent Energy

<160 µJ

Maximum Pyroelectric Rep. Rate (pulses per second)

300

Wavelength Range (micrometers)

0.19 to 12

Maximum Average Power (watts)

Maximum Pulse Width (microseconds)

Maximum Energy Density (millijoules per square centimeter)

500 (at 1064 nm, 10 ns)

Diffuser

Calibration Uncertainty (%)(k=2)

±2

Energy Linearity (%)

±3

Calibration Wavelength (nanometers)

1064

Cable Length (meters)
