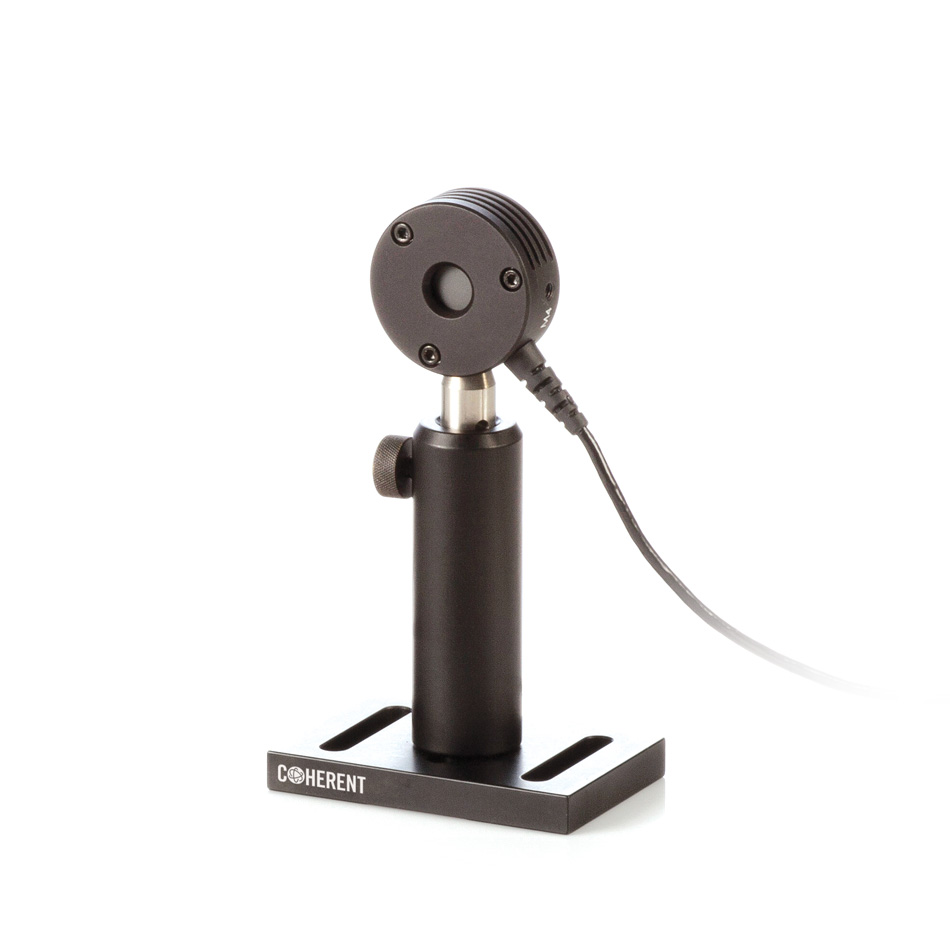

Coherent EnergyMax-USB J-10MB-HE Energy Sensor

Updated:2024-11-19

Views:137

  • Brand: Coherent
  • Model: EnergyMax-USB J-10MB-HE
  • Description: The EnergyMax-USB J-10MB-HE energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1110843) is available.
  • Data download
    Feedback

  • WeChat

    QQ

    Online Service

Product Details

Coherent EnergyMax-USB J-10MB-HE Energy Sensor Description：

Datasheet User's Manual

The EnergyMax-USB J-10MB-HE energy sensor is terminated in a USB cable that interfaces directly to a PC. A DB25 model (PN 1110843) is available.

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 12 µJ to 20mJ at up to 1000 pps. Direct USB interface.

Key Features:

190 nm to 12 µm spectral range

10 mm diameter active area

12 µJ to 20mJ energy range

1000 pps repetition rate operation

Direct USB interface

ISO 17025 accredited

Specifications

Cable Type
USB
Active Area Diameter
10 mm
Detector Coating
MaxBlack
Energy Range
12 µJ to 20 mJ
Wavelength Range
190 nm to 12 µm
Noise Equivalent Energy
<1.2 µJ
Wavelength Range (micrometers)
0.19 to 12
Maximum Average Power (watts)
4
Maximum Pulse Width (microseconds)
17
Maximum Energy Density (millijoules per square centimeter)
500 (at 1064 nm, 10 ns)
Diffuser
No
Calibration Uncertainty (%)(k=2)
±2
Energy Linearity (%)
±3
Calibration Wavelength (nanometers)
1064
Cable Length (meters)
3
