F50A-BB-18 P/N7Z07121 Laser Measurement Sensor

Updated:2023-05-24

Brand: Ophir
Model: F50A-BB-18
Description: The F50A-BB-18 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 17.5mm aperture. It can measure power from 10mW to 50W and energy from 6mJ to 50J. It has the spectr
Data download

Feedback
WeChat

QQ

Online Service

Product Details

F50A-BB-18 P/N7Z07121 Laser Measurement Sensor Introduction：

The F50A-BB-18 is a general purpose fan cooled thermal power/energy laser measurement sensor with a 17.5mm aperture. It can measure power from 10mW to 50W and energy from 6mJ to 50J. It has the spectrally flat broadband coating and covers the spectral range from 0.19 to 11µm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

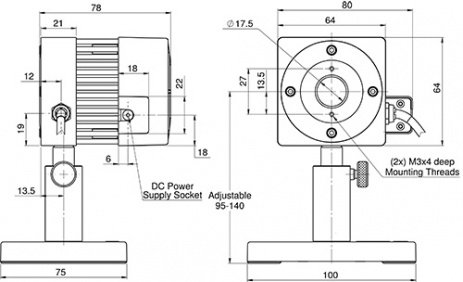

F50A-BB-18 P/N7Z07121 Laser Measurement Sensor Drawing：

F50A-BB-18 Drawing

F50A-BB-18 P/N7Z07121 Laser Measurement Sensor Specification：

Absorber Type	Broadband
Aperture	Ø17.5mm
Spectral Range	0.19 – 11µm
Power Range	10mW-50W
Energy Range	6mJ-50J
Backscattered Power	N.A.
Dimensions	64 L x 64 W x 78 D (mm)
Max Pulse Energy	50J
Max Average Power Density	17kW/cm²
Response Time	0.8 s
Max Energy Density (for <100ns)	0.3J/cm²
Max Energy Density (for 2ms)	2J/cm²
Max Average Power	50W
BeamTrack Functions	N.A.
