FPD-VIS-300 7Z02507 Fast Optical Detector

Updated:2023-06-01

Views:1259

  • Brand:Ophir
  • Model:FPD-VIS-300
  • Description: The FPD-VIS-300 is a fast optical detector for visualizing and measuring the temporal characteristics of laser beams in the spectral range from 320 nm to 1100 nm. It has a silicon PIN photodiode and i
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

FPD-VIS-300 7Z02507 Fast Optical Detector Description:

Datasheet Product Manual

The FPD-VIS-300 is a fast optical detector for visualizing and measuring the temporal characteristics of laser beams in the spectral range from 320 nm to 1100 nm. It has a silicon PIN photodiode and is designed to convert optical signals into electrical signals which are then measured with third party measurement instrumentation such as oscilloscopes or spectrum analyzers for measurement. The FPD-VIS-300 has a rise time of 300 psec. Its reverse bias voltage is provided by internal batteries.

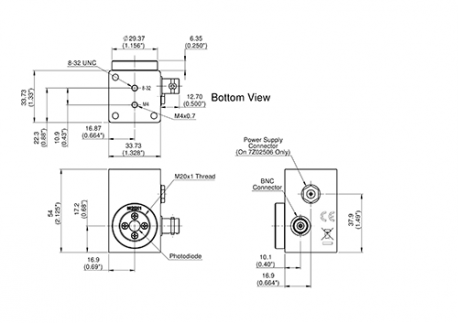

FPD-VIS-300 7Z02507 Fast Optical Detector Drawing:

FPD-VIS-300 Drawing

FPD-VIS-300 7Z02507 Fast Optical Detector Specifications:

Detector Type Si
Rise Time/Fall Time <0.3 nsec
Spectral Range 320-1100 nm
Active Area Diameter 0.4 mm
Noise Equivalent Power <0.01 pW/√Hz
Dimensions 54 L x 34 W x 40 D (mm)
Detector Area 0.13 mm²
Wavelength of Peak Sensitivity 770 nm
Responsivity at Peak Wavelength 0.5 A/W
Responsivity (Irradiance) at Peak Wavelength 31 x 10⁻³ V/(W/cm²)
Bias Voltage 9 VDC
Bias Voltage Source Batteries
Bandwidth >1.2 GHz
Dark Current <0.1 nA
Maximum Average Power Input 25 mW
Mounting (Tapped Holes) 8-32 & M4
Output Connector BNC
Accessory Threads M20x1
