GPS 18x PC、GPS 18X LVC GPS 18X USB

GPS 18x PC、GPS 18X LVC GPS 18X USB Description：

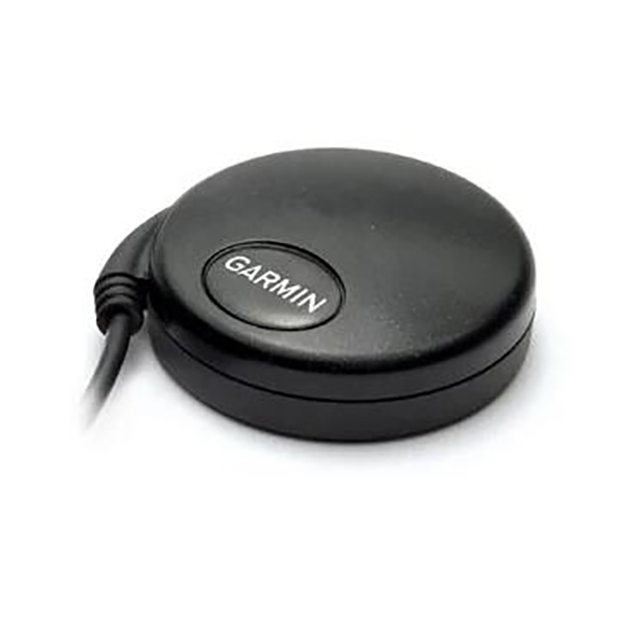

GPS 18x is an OEM high sensitivity GPS sensor for automotive, fleet vehicles and electronic applications requiring small, high precision GPS receivers.

Use in tight Spaces

This highly sensitive, 12-channel, Waas-enabled GPS receiver is available in CMOS-level serial or USB2.0 full-speed versions with an integrated magnetic base. The disc receiver is 2.4 inches (6.1 cm) in diameter and weighs just a few ounces, making it an ideal solution for tight space applications.

Select your connection type

GPS 18x offers 3 different cable configurations. All 3 versions of GPS 18x come with non-volatile memory for storing configuration information, real-time clock and raw measurement output data for complex customer applications.

1. GPS 18x PC -- with DB-9 pin serial connector with 9 V cigarette lighter adapter; Data can be output in NMEA 0183 format (industry standard) or in proprietary Garmin format.

2, GPS 18x USB - with A type A USB connector, compatible with USB 2.0 and 1.1 full speed host; Data can only be output in Garmin-exclusive format.

3, GPS 18x LVC - with bare wire, can connect to a variety of applications; Can be in NMEA 0183 format (industry standard) or proprietary Garmin format output data; Provides a logic level output of pulses per second, with rising edges aligned within 1 microsecond of UTC time.

The GPS 18x OEM is a highly sensitive GPS sensor that replaces the GPS 18 OEM.
