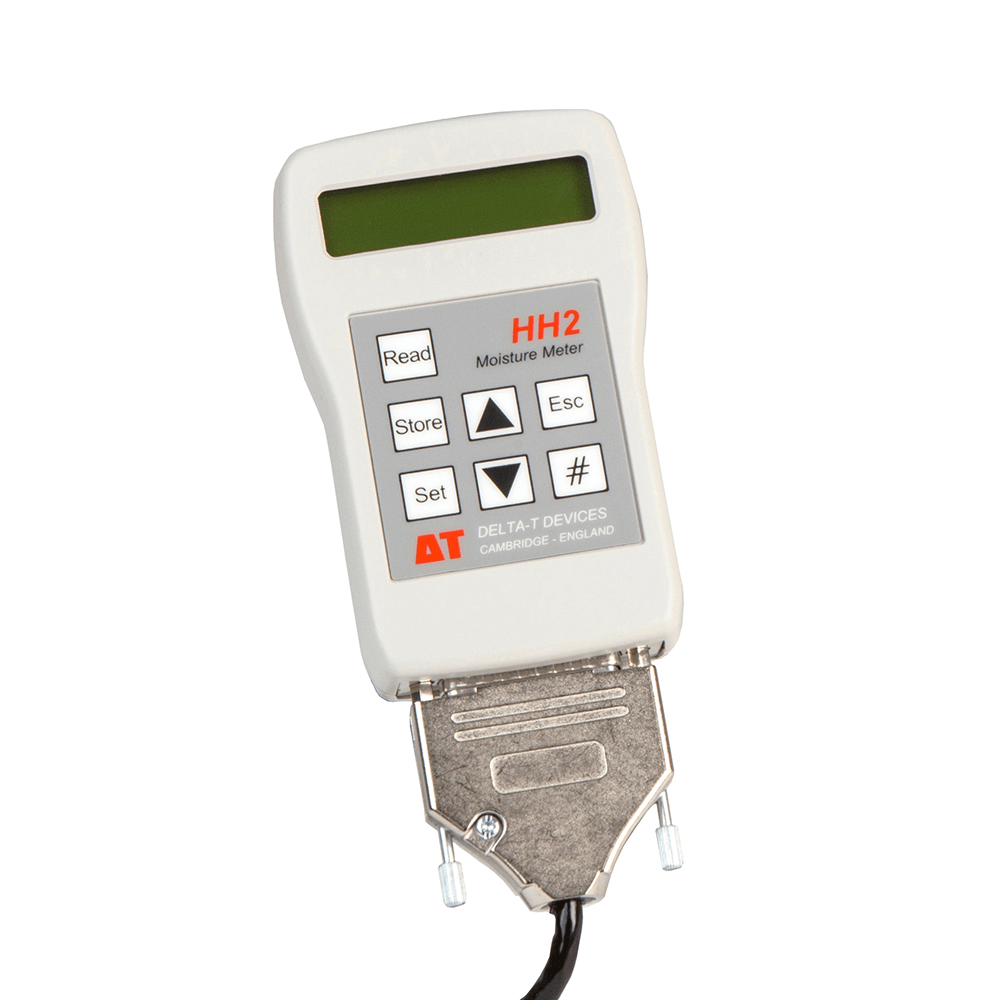

HH2 Moisture Meter

HH2 Moisture Meter Description：

Getting Started Guide User's Manual

Immediate display of water content

Reads ML3, SM150T, PR2 (analogue and SDI-12) or WET Sensor

Stores up to 1500 time-stamped readings

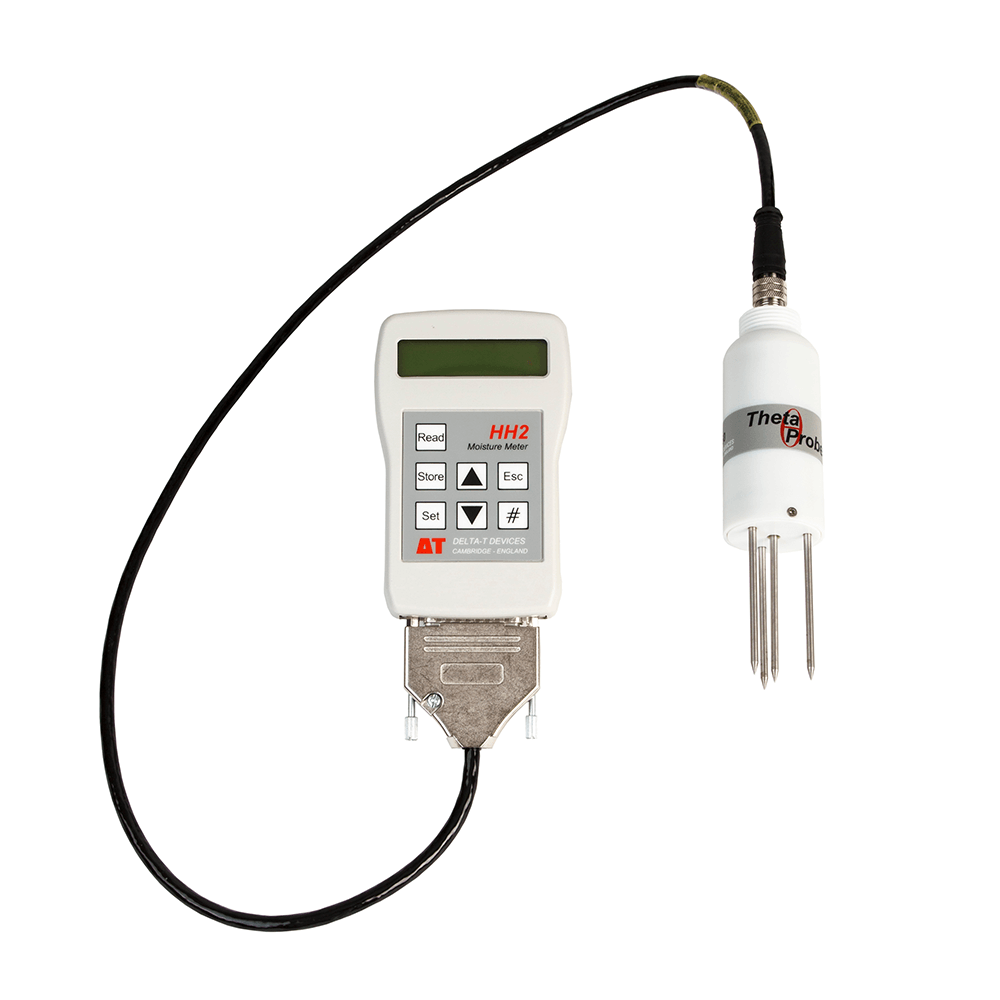

The HH2 Moisture Meter is a versatile readout unit for use with Delta-T soil moisture sensors. It can be used with the PR2 Profile Probe (both analogue and SDI-12* versions), ML3 ThetaProbe, SM150T and WET Sensors.

The HH2 readout unit offers impressive functionality in a compact, hand-held unit, designed for field use. Readings are displayed on the LCD and can be stored to memory for later download to a PC.

The unit can be operated with one hand, for convenience in the field. Each time-stamped reading includes a unique sample number, a plot identification number (A to Z), and a sensor location number (1 to 255).

The HH2Read Windows PC software provides a data import wizard for direct download into Excel or other PC spreadsheet packages, or into irrigation scheduling programs. Alternatively, data can be downloaded in comma-separated ASCII data file (.CSV) format.

Data is transferred to a PC using the RS-232 cable provided with each unit. Please note that most PCs no longer have an RS232 port; for USB connection a USB to RS232 adapter cable is required (see Accessories).

HH2 Moisture Meter Specification：
