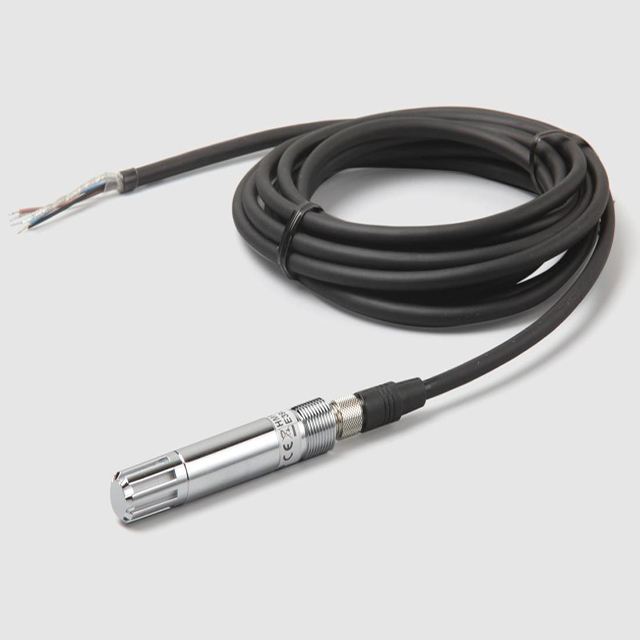

HMP60 temperature and humidity probe

User 's Manual

The HMP60 is a simple, durable, affordable temperature and humidity sensor from Vaisala. It is suitable for batch applications or integration into other manufacturers' equipment, incubators, greenhouses, fermentation chambers and data recorders. It has good compatibility with the full range of CSI data collectors. HMP60 adopts the new INTERCAP humidity probe, which can be quickly replaced in the field. In addition, it can also connect to the wireless sensor measurement network through the CWS900 series wireless sensor interface to realize the digital wireless transmission of measurement data.

Temperature range: -40℃~60℃

Temperature accuracy: ±0.6℃

Relative humidity range: 0~100%RH

Relative humidity accuracy: ±3%RH (0℃~40℃)

Operating temperature: -40℃~60℃

Energy consumption: typical state 1mA, maximum 5mA

Power supply: 5 to 28VDC (12VDC port of the data collector is recommended)

Dimensions: Length 7.1cm, diameter 1.2cm/1.8cm (probe end/cable end)

Weight: 50g

Main Advantages:

Low power consumption

Due to the very low current consumption, the HMP60 is suitable for battery powered applications.

Easy to install

The probe cable has a cock-in quick connector for easy installation.

No recalibration needed

Sensors can also be easily replaced in the field.
