Helios Plus - EtherNet/IP-M 7Z07104

Updated:2023-05-26

Brand: Ophir
Model: Helios Plus - EtherNet/IP-M
Product description: The Helios Plus - EtherNet/IP-M measures high power industrial lasers of up to 12kW by measuring the energy of a short time exposure to this power. The laser is set to a pulse of from 0.3 to several s
Data download

Feedback
WeChat

QQ

Online Service

product details

Helios Plus - EtherNet/IP-M 7Z07104 Description:

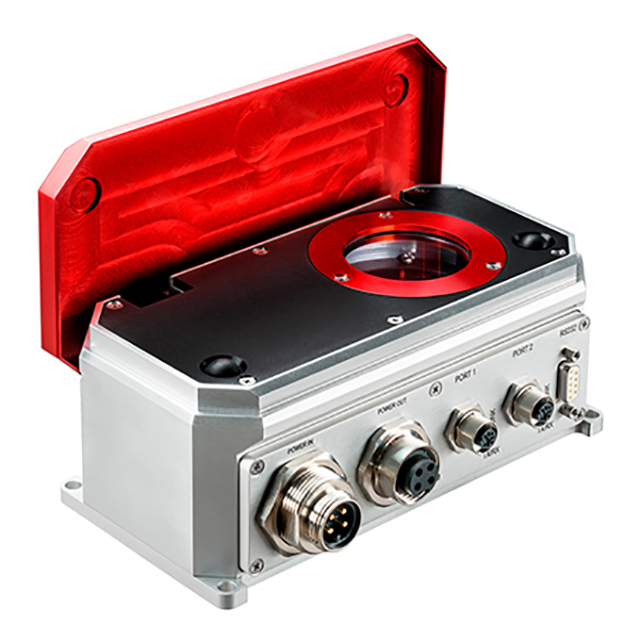

The Helios Plus - EtherNet/IP-M measures high power industrial lasers of up to 12kW by measuring the energy of a short time exposure to this power. The laser is set to a pulse of from 0.3 to several seconds. The Helios Plus - EtherNet/IP-M measures the energy and exposure time of this sample of the power, and from this calculates the power. By keeping the pulse energy under 5 kJ, there is no need for water cooling and the sensor can be kept to a compact size. Helios Plus - EtherNet/IP-M is a version of Helios that has EtherNet/IP and RS232 communications, M12 connector for data, Mini 7/8" connector for power.

Helios Plus - EtherNet/IP-M 7Z07104 Drawing：

Helios Plus - EtherNet/IP-M Drawing

Helios Plus - EtherNet/IP-M 7Z07104 Specification：

Absorber Type	LP2, absorption ~94%
Aperture	Ø50mm
Spectral Range	450-550nm, 900-1100nm
Power Range	50W-12kW
Energy Range	100J – 5kJ
Backscattered Power	N.A.
Dimensions	200 Lx145 Wx144 H (mm) - Open, 200 L x 122 W x 84 H(mm)-Closed Connectors: M12, Mini 7/8”, DB9
Max Pulse Energy	N.A.
Max Average Power Density	N.A.
Response Time	3 s
Max Energy Density (for <100ns)	N.A.
Max Energy Density (for 2ms)	4kJ/cm²
Max Average Power	12kW
BeamTrack Functions	N.A.
