Helios Plus - Profinet 7Z07100

Updated:2023-05-26

Brand: Ophir
Model: Helios Plus - Profinet
Description: The Helios Plus - Profinet measures high power industrial lasers of up to 12kW by measuring the energy of a short time exposure to this power. The laser is set to a pulse of from 0.3 to several second
Data download

Feedback
WeChat

QQ

Online Service

Product Details

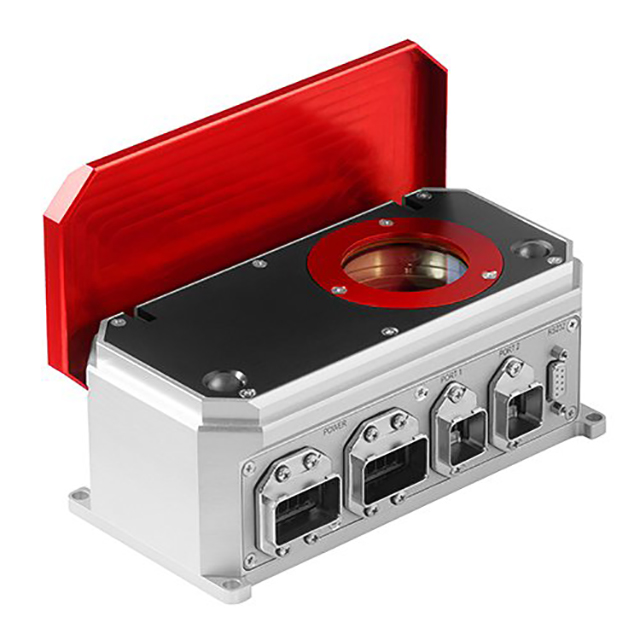

Helios Plus - Profinet 7Z07100 Description:

The Helios Plus - Profinet measures high power industrial lasers of up to 12kW by measuring the energy of a short time exposure to this power. The laser is set to a pulse of from 0.3 to several seconds. The Helios Plus - Profinet measures the energy and exposure time of this sample of the power, and from this calculates the power. By keeping the pulse energy under 5 kJ, there is no need for water cooling and the Helios power sensor can be kept to a compact size. Helios Plus - Profinet is a version of Helios that has Profinet and RS232 communications, AIDA compatible connectors for power and data. For EtherNet/IP communication please see Helios Plus - EtherNet/IP or Helios Plus - EtherNet/IP-M and for EtherCAT communication please see Helios Plus - EtherCAT

Helios Plus - Profinet 7Z07100 Drawing：

Helios Plus - Profinet Drawing

Helios Plus - Profinet 7Z07100 Specification：

Absorber Type	LP2, absorption ~94%
Aperture	Ø50mm
Spectral Range	450-550nm, 900-1100nm
Power Range	50W-12kW
Energy Range	100J – 5kJ
Backscattered Power	N.A.
Dimensions	200 Lx123 Wx144 H (mm) - Open, 200 L x 100 W x 84 H(mm)-Closed Connectors: AIDA, DB9
Max Pulse Energy	N.A.
Max Average Power Density	N.A.
Response Time	3 s
Max Energy Density (for <100ns)	N.A.
Max Energy Density (for 2ms)	4kJ/cm²
Max Average Power	12kW
BeamTrack Functions	N.A.
