IS6-C-VIS 7Z02470 Integrating Sphere

Updated:2022-12-15

Brand: OPHIR
Model: IS6-C-VIS
Product description: The IS6-C-VIS is a 6” integrating spheres (5.3” inside) with a Silicon detector for use with collimated (C) beams. The IS6-C-VIS comes with a VIS detector, is calibrated from 400 to 1100nm and can mea
Data download

Feedback
WeChat

QQ

Online Service

product details

Overview of IS6-C-VIS Integrating Sphere：

User's Manual

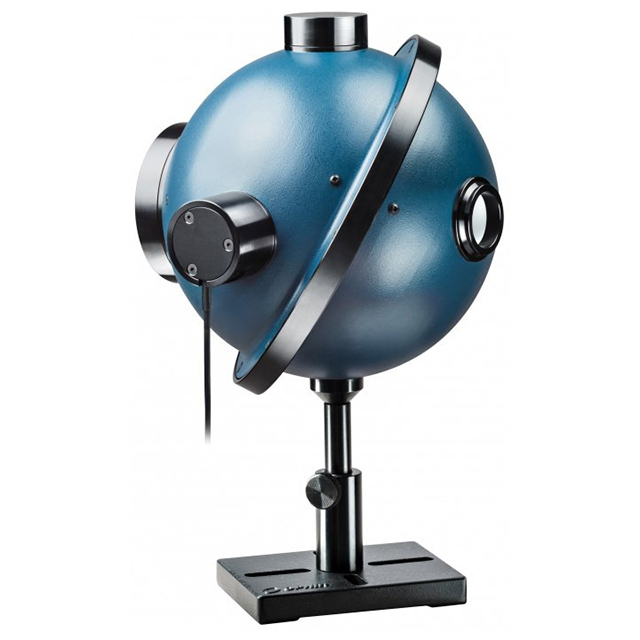

The IS6-C-VIS is a 6” integrating spheres (5.3” inside) with a Silicon detector for use with collimated (C) beams. The IS6-C-VIS comes with a VIS detector, is calibrated from 400 to 1100nm and can measure up to 30W.

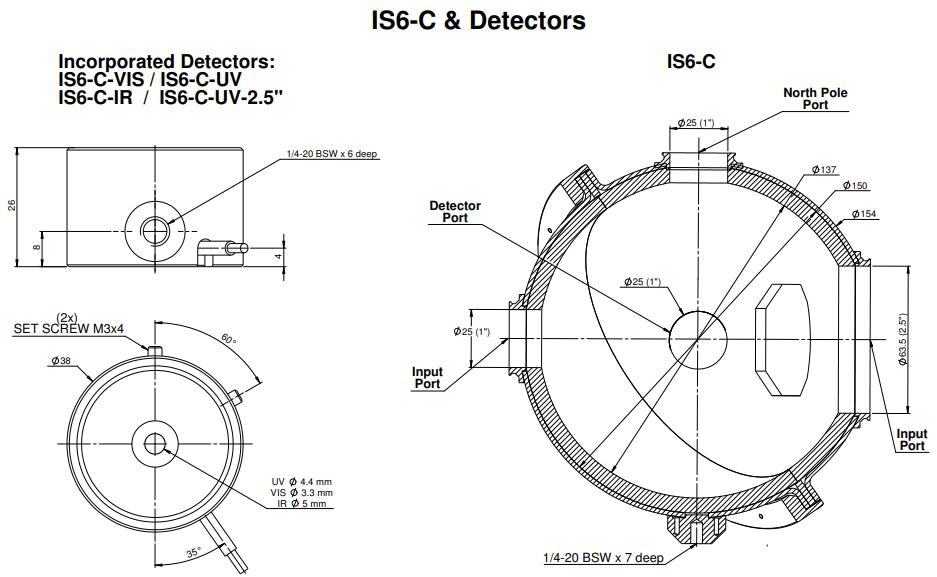

IS6-C-VIS integrating sphere drawing：

Main parameters:

Aperture	Ø25mm
Spectral Range	400-1100nm
Power Range	20μW-30W
Dimensions	Ø154 (mm)
Max Pulse Energy	5mJ
Max Average Power Density	1 kw/cm²
Max Average Power	30W
Max Beam Divergence	±15 deg
Sensitivity to Beam Size	±1%

Problem summary:

Introduction to the types of power/energy laser sensors

Power and single engine energy sensor

Ophir offers two types of power sensors: photodiode sensors and thermal sensors. Photodiode sensors are used for low power from picowatts to hundreds of milliwatts and up to 3W. Thermal sensors are suitable for power ranging from a fraction of a milliwatt to several kilowatts. The thermal sensor can also measure the single transmission energy at a pulse rate of no more than one pulse every 5 seconds.

Repetitive pulse energy sensor

For higher pulse rates, Ophir has pyroelectric energy sensors capable of measuring pulse rates up to several 10KHz.
