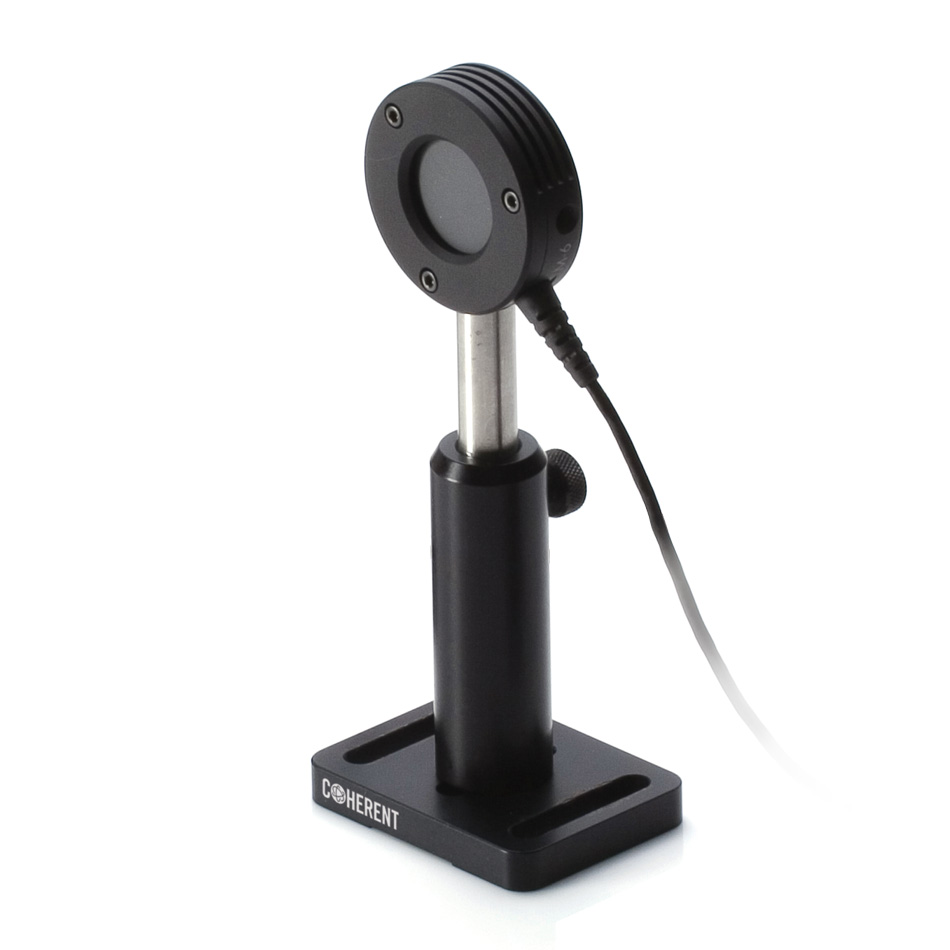

Coherent J-10MB-LE Energy Sensor

Updated:2024-11-20

Brand: Coherent
Model: J-10MB-LE
Description: The J-10MB-HE energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent J-10MB-LE Energy Sensor Description：

Datasheet

The J-10MB-HE energy sensor is terminated in a SmartProbe DB25 cable and is directly compatible with FieldMaxII-TOP, FieldMaxII-P, LabMax-TOP, and LabMax-Pro SSIM meters.

USB-direct (PN 1191435) and RS232-direct (PN 1191428) models are available.

Pyroelectric energy sensor with MaxBlack coating for measuring laser pulses from 300 nJ to 600µJ at up to 1000 pps.

Key Features:

190 nm to 12 µm spectral range

10mm diameter active area

300 nJ to 600µJ energy range

1000 pps repetition rate operation

ISO 17025 accredited

Specifications

Cable Type

J DB-25

Active Area Diameter

10 mm

Detector Coating

MaxBlack

Energy Range

300 nJ - 600 µJ

Wavelength Range

190 nm to 12 µm

Noise Equivalent Energy

<20 nJ

Maximum Pyroelectric Rep. Rate (pulses per second)

1000

Maximum Average Power (watts)

Maximum Pulse Width (microseconds)

Maximum Energy Density (millijoules per square centimeter)

500 (@1064nm, 10ns)

Diffuser

Calibration Uncertainty (%)(k=2)

±2

Energy Linearity (%)

±3

Calibration Wavelength (nanometers)

1064

Cable Length (meters)

2.5
